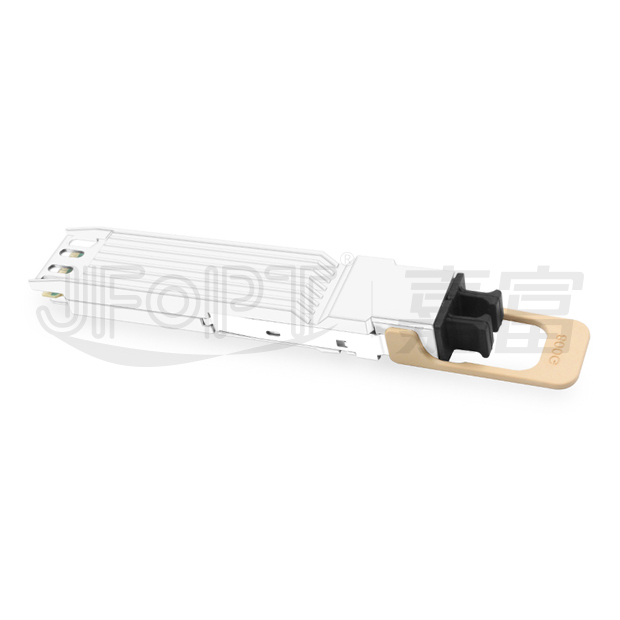

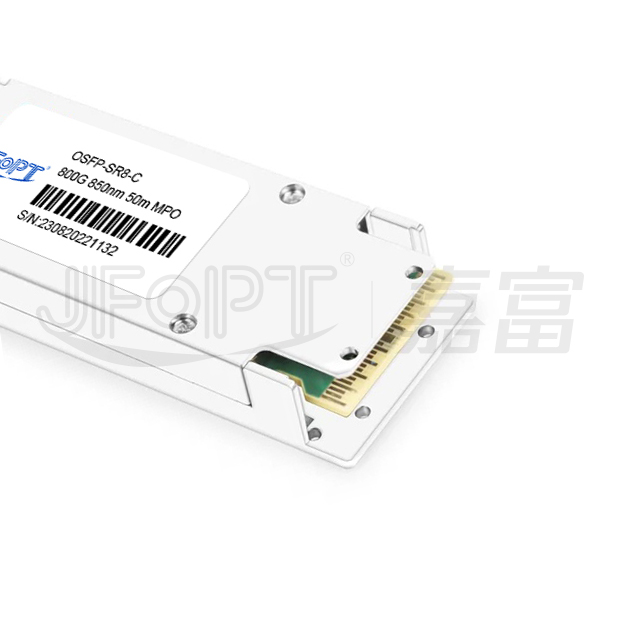

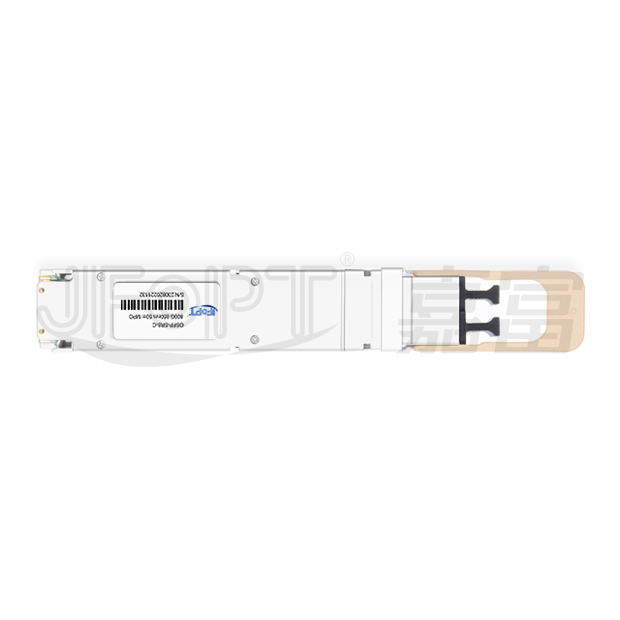

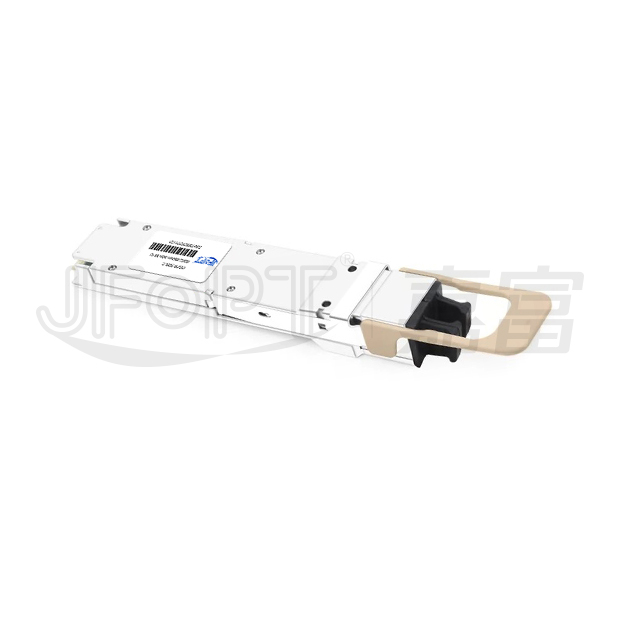

產品型號
|
JFTSM-OSFP-800(1x100G)-850-005-(SR8)-MPO16/2MPO8/12
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
OSFP
|

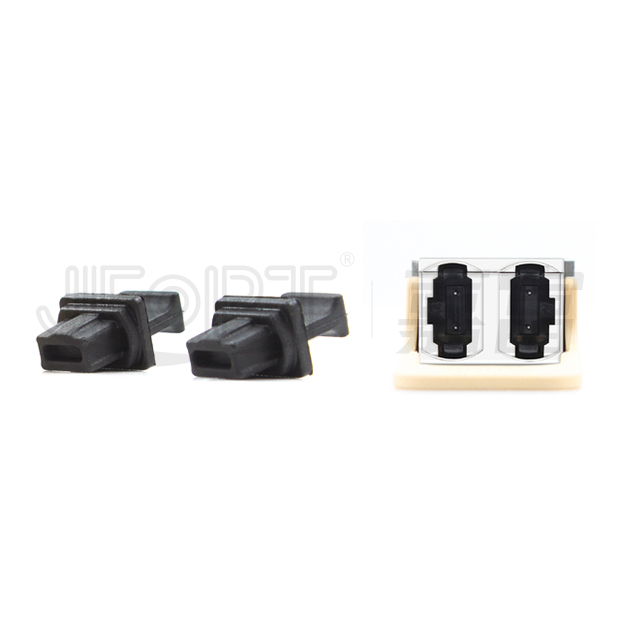

光口類型
|
MPO-16 APC
2xMTP-12 APC
|
|
最高總速率
|
800Gbps
|
每通道速率
|
106.25 Gb/s
|
|
OM3最大傳輸距離
|
30m
|
OM4最大傳輸距離
|
50m
|
|
工作波長
|
850nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
MMF
|
纖芯尺寸
|
50/125
|
|
發射器類型
|
VCSEL
|
接收器類型
|
PIN
|
|
發射功率
|
-4.5~4.0dBm
|
接收靈敏度
|
-6.4dBm
|
|
數字診斷(DOM)
|
YES
|
接收過載
|
4dBm
|
|
功耗
|
<12W
|
支持協議
|
800G BASE-SR8 Ethernet
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
JFOPT嘉(jia)富持續(xu)投入光(guang)模(mo)塊(kuai)(kuai)生(sheng)產(chan)領域，產(chan)品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列光(guang)模(mo)塊(kuai)(kuai)。同(tong)時為(wei)下游(you)同(tong)行提供TOSA、ROSA、BOSA等(deng)光(guang)器件(jian)半成品解決(jue)方案。JFOPT嘉(jia)富生(sheng)產(chan)線具備日(ri)產(chan)量一萬只光(guang)模(mo)塊(kuai)(kuai)、兩萬只光(guang)器件(jian)的能力。此外，JFOPT嘉(jia)富光(guang)模(mo)塊(kuai)(kuai)擁(yong)有業界領先的耐高溫、抗干擾特性(xing)，廣泛應用(yong)于計算(suan)中心、運營商、交(jiao)通安防(fang)、電(dian)力設施等(deng)行業領域。
JFOPT OSFP 800G 850nm SR8 MPO16/2MPO8 12光模(mo)塊是(shi)一款先進(jin)的(de)8通道可插拔光纖(xian)模(mo)塊，專為(wei)800Gbps SR8高(gao)(gao)(gao)速應用設計(ji)。該(gai)高(gao)(gao)(gao)性能收發(fa)器(qi)適(shi)用于短距離數據(ju)通信和互連解決方案，支(zhi)持每條通道高(gao)(gao)(gao)達(da)106.25Gbps的(de)數據(ju)傳(chuan)輸(shu)(shu)速率(lv)，通過OM3光纖(xian)最遠傳(chuan)輸(shu)(shu)30米，OM4光纖(xian)最遠傳(chuan)輸(shu)(shu)50米，其光接(jie)(jie)口(kou)采用MPO連接(jie)(jie)器(qi)。該(gai)模(mo)塊針對多模(mo)光纖(xian)系(xi)統優化設計(ji)，工作波長為(wei)850nm，電(dian)氣接(jie)(jie)口(kou)采用60針邊(bian)緣型連接(jie)(jie)器(qi)確保穩(wen)定(ding)可靠的(de)連接(jie)(jie)，是(shi)為(wei)滿(man)足下一代高(gao)(gao)(gao)速網絡需求而(er)設計(ji)的(de)尖端解決方案。
| Hot-pluggable OSFP form factor | Data rate 106.25Gb/s PAM4per lane | ||||||||
| 8x106Gbps PAM4 transmitter and PAM4 receiver | 8 channels 850nm VCSEL laser array and 8 channels PIN photo-detector array | ||||||||
| Maximum link length of 30m on OM3 MMF and 50m on OM4 MMF | Digital diagnostics functions are available via the I2C interface | ||||||||
| Single 3.3V power supply and power dissipation<12W | MPO-16APC or 2xMTP-12 APC connector | ||||||||
| Operating case temperature:0℃~+70℃ |
| 800G BASE-SR8 ethernet | ||||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
| Storage temperature | TC | -40 | +85 | ℃ | |||||
| Relative humidity | RH | 5 | 85 | % | |||||
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
| Operating case temperature | Tca | 0 | - | 70 | ℃ | ||||
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
| Data rate per lane | DR | - | 106.25 | - | Gbps | - | |||
Transmitter |
|||||||||
| Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
| Common mode voltage tolerance | - | 15 | - | - | mV | - | |||
| Input differential impedance | Rin | - | 100 | - | Ω | - | |||
| Differential input voltage swing | Vin | 300 | - | 1100 | mV | - | |||
| Tx fault | VoL | -0.3 | - | 0.4 | V | At 0.7mA | |||
Receiver |
|||||||||
| Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
| Differential output swing | Vout | 300 | - | 900 | mV | - | |||
| Output differential impedance | Rout | - | 100 | - | Ω | - | |||
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
| Center wavelength | λ | 844 | 850 | 863 | nm | - | |||
| RMS spectral width | Pm | - | - | 0.6 | nm | 1 | |||
| Average optical power | Po | -4.5 | - | 4 | dBm | 2 | |||
| Extinction ratio | ER | 2.5 | - | - | dBm | - | |||
| Optical modulation amplitude(OMAouter) (max) |
OMA | 3.5 | dBm | - | |||||
| Optical Modulation Amplitude(OMAouter) (min) max(TECQ,TDECQ)≤1.8dB 1.8 |
-2.6 4.4+max(TECQ,TDECQ) |
- | |||||||
| Transmitter and dispersion eye closure | TDECQ | - | - | 4.4 | dB | - | |||
| Transmitter eye closure | TDEC | - | - | 4.4 | dB | - | |||
| Optical return loss tolerance | ORL | - | - | 12 | dB | - | |||
| Receiver | |||||||||
| Center wavelength | λ | 842 | 850 | 948 | nm |  - |
|||
| Average receive power,each lane | - | -6.4 | - | 4 | dBm | - | |||
| Receive power(OMAouter),each lane | - | - | - | 3.5 | dBm | - | |||
| Receiver sensitivity(OMAouter) Max(TECQ,TDECQ)≤1.8dB 1.8 |
Psens | -4.6 -6.4+TECQ |
dBm | 3 | |||||
| LOS asserted | Lsa | -15 | - | - | dBm | - | |||
| LOS De-asserted | Lda | - | - | -6.6 | dBm | - | |||
| LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Trade-offs are available between spectralwidth,center wavelength and minimum OMA. [2]The optical power is launched into MMF. [3]BER=2.4E-4;PRBS31Q@53.125GBd. |
|||||||||
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

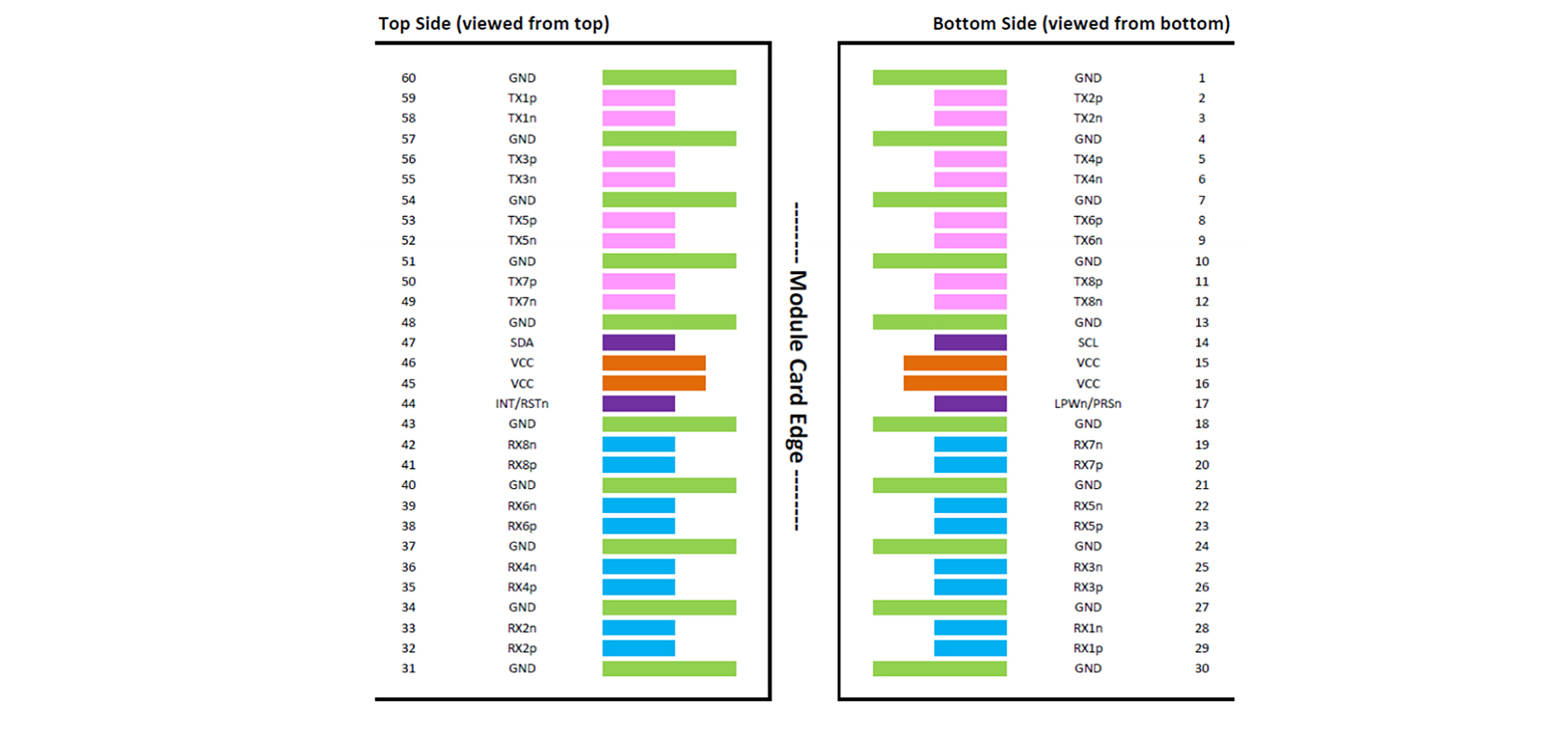

| Pin | Symbol | Name/Description | |||||||
| 1 | GND | Ground | |||||||
| 2 | TX2p | Transmitter data non-inverted | |||||||
| 3 | TX2n | Transmitter data inverted | |||||||
| 4 | GND | Ground | |||||||
| 5 | Tx4p | Transmitter data non-inverted | |||||||
| 6 | TX4n | Transmitter data inverted | |||||||
| 7 | GND | Ground | |||||||
| 8 | TX6p | Transmitter data non-inverted | |||||||
| 9 | TX6n | Transmitter data inverted | |||||||
| 10 | GND | Ground | |||||||
| 11 | TX8p | Transmitter data non-inverted | |||||||
| 12 | TX8n | Transmitter data inverted | |||||||
| 13 | GND | Ground | |||||||
| 14 | SCL | 2-wire Serial interface clock | |||||||
| 15 | VCC | +3.3V Power | |||||||
| 16 | VCC | +3.3V Power | |||||||
| 17 | LPWn/PRSn | Low-power mode/module present | |||||||
| 18 | GND | Ground | |||||||
| 19 | RX7n | Receiver data inverted | |||||||
| 20 | RX7p | Receiver data non-inverted | |||||||
| 21 | GND | Ground | |||||||
| 22 | RX5n | Receiver data inverted | |||||||
| 23 | RX5p | Receiver data non-inverted | |||||||
| 24 | GND | Ground | |||||||
| 25 | RX3n | Receiver data inverted | |||||||
| 26 | RX3p | Receiver data non-inverted | |||||||
| 27 | GND | Ground | |||||||
| 28 | RX1n | Receiver data inverted | |||||||
| 29 | RX1p | Receiver data non-inverted | |||||||
| 30 | GND | Ground | |||||||
| 31 | GND | Ground | |||||||
| 32 | RX2p | Receiver data non-inverted | |||||||
| 33 | RX2n | Receiver data inverted | |||||||
| 34 | GND | Ground | |||||||
| 35 | RX4p | Receiver data non-inverted | |||||||
| 36 | RX4n | Receiver data inverted | |||||||
| 37 | GND | Ground | |||||||
| 38 | RX6p | Receiver data non-inverted | |||||||
| 39 | RX6n | Receiver data inverted | |||||||
| 40 | GND | Ground | |||||||
| 41 | RX8p | Receiver data non-inverted | |||||||
| 42 | RX8n | Receiver data inverted | |||||||
| 43 | GND | Ground | |||||||
| 44 | INT/RSTn | Module interrupt/module reset | |||||||
| 45 | VCC | +3.3V power | |||||||
| 46 | VCC | +3.3V power | |||||||
| 47 | SDA | 2-wire serial interface data | |||||||
| 48 | GND | Ground | |||||||
| 49 | TX7n | Transmitter data inverted | |||||||
| 50 | TX7p | Transmitter data non-inverted | |||||||
| 51 | GND | Ground | |||||||
| 52 | TX5n | Transmitter data inverted | |||||||
| 53 | TX5p | Transmitter data non-inverted | |||||||
| 54 | GND | Ground | |||||||
| 55 | TX3n | Transmitter dataInverted | |||||||
| 56 | TX3p | Transmitter data non-inverted | |||||||
| 57 | GND | Ground | |||||||
| 58 | TX1n | Transmitter data inverted | |||||||
| 59 | TX1p | Transmitter data non-inverted | |||||||
| 60 | GND | Ground | |||||||
