產品型號
|
JFTSM-OSFP-400(4x100)-13-05(DR4)-MPO8/12
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
OSFP
|
光口類型
|
MPO 8C/12C
|
|
最高總速率
|
400Gbps
|
每通道速率
|
53.125Gbps
|
|
最大傳輸距離
|
500m
|
||
|
工作波長
|
1310nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
DFB
|
接收器類型
|
PIN
|
|
發射功率
|
-2.9~4.0dBm
|
接收靈敏度
|
-4.4dBm
|
|
數字診斷(DDM)
|
YES
|
接收過載
|
4dBm
|
|
功耗
|
<12W
|
支持協議
|
IEEE802.3bs and OSFP MSA
CMlS 4.0 12C interface 4x100G DR4 applications Data center |
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
JFOPT嘉富持續投入(ru)光(guang)(guang)模(mo)塊生(sheng)產(chan)領(ling)域，產(chan)品(pin)覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全(quan)系列光(guang)(guang)模(mo)塊。同(tong)時(shi)為(wei)下(xia)游同(tong)行提供TOSA、ROSA、BOSA等(deng)光(guang)(guang)器件(jian)半成品(pin)解決方(fang)案。JFOPT嘉富生(sheng)產(chan)線具備日產(chan)量一萬只光(guang)(guang)模(mo)塊、兩(liang)萬只光(guang)(guang)器件(jian)的(de)(de)能力(li)。此外，JFOPT嘉富光(guang)(guang)模(mo)塊擁有業界領(ling)先(xian)的(de)(de)耐高溫、抗干擾特性，廣泛應用(yong)于計算中心(xin)、運營商、交通安防、電力(li)設施(shi)等(deng)行業領(ling)域。

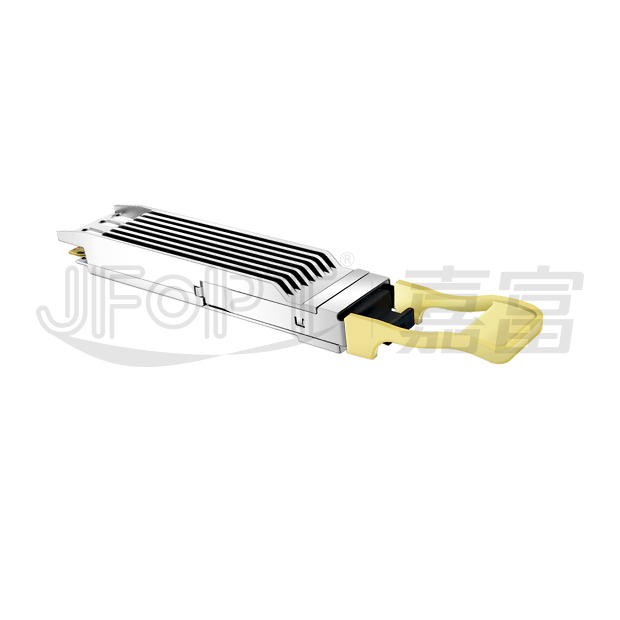

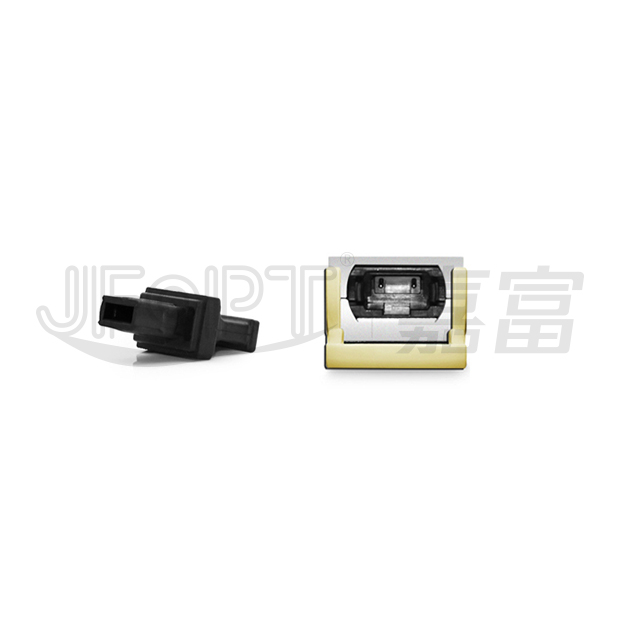

JFOPT OSFP 400G (4x100G) 1310nm 500m DR4 MPO 8/12光(guang)(guang)模(mo)塊(kuai)是一(yi)款面(mian)向(xiang)500米(mi)光(guang)(guang)通信應用的高性(xing)能模(mo)塊(kuai)，通過將8路(lu)50Gb/s（PAM4）電信號轉換(huan)為4路(lu)并行(xing)100Gb/s光(guang)(guang)信號實現(xian)400Gb/s總速率，接(jie)收端則執行(xing)逆向(xiang)轉換(huan)；該模(mo)塊(kuai)采用帶導引針的MPO-12光(guang)(guang)學連接(jie)器確保精準對準（嚴禁扭轉光(guang)(guang)纜以(yi)保持通道(dao)間連接(jie)準確性(xing)），電氣接(jie)口符合OSFP MSA標(biao)準的金手指(zhi)連接(jie)器，嚴格遵循OSFP多(duo)源協議(MSA) Type 2設計規范(fan)，集成緊湊外(wai)形、堅固光(guang)(guang)電接(jie)口及數(shu)字診斷(duan)功能，可在極端溫濕度(du)及EMI干擾等惡劣環境下(xia)穩定(ding)運(yun)行(xing)。
| Hot-pluggable OSFP form factor | MPO-12connector | ||||||||
| Four parallel 1310nm optical lanes | Data rate 106.25Gbps PAM4 per lane | ||||||||
| 8x53.125GBd (PAM4)electrical interface | Up to 500m transmission on single mode fiber(SMF)with FEC | ||||||||
| Digital diagnostics functions are available via the I2C interface | Single 3.3V power supply and power dissipation<12W | ||||||||
| Operating case temperature:0℃~+70℃ |
| 4x100G DR4 applications | Data center | |||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
| Storage temperature | TC | -40 | +85 | ℃ | |||||
| Relative humidity | RH | 5 | 85 | % | |||||
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
| Operating case temperature | Tca | 0 | - | 70 | ℃ | ||||
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
| Data rate per lane | DR | - | 53.125 | - | Gbps | - | |||
Transmitter |
|||||||||
| Input differential impedance | Rin | 90 | 100 | 110 | Ω | - | |||
| Differential input voltage swing | Vin | 900 | - | 1100 | mVp-p | - | |||
Receiver |
|||||||||
| Differential output swing | Vout | - | - | 900 | mVp-p | - | |||
| Output differential impedance | Rout | 90 | 100 | 110 | Ω | - | |||
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
| Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
| Data rate,each lane | - | 53.125±100ppm | GBd | - | |||||
| Side-mode suppression ratio | SMSR | 30 | - | - | dB | - | |||
| Average optical power,per lane | Po | -2.9 | - | 4 | dBm | 1 | |||
| Extinction ratio | ER | 3.5 | - | - | dBm | - | |||
| Outer optical modulation amplitude | OMAouter | -0.8 | - | 4.2 | dBm | - | |||
| Transmitterand dispersion eye | TDECQ | - | - | 3.4 | dB | - | |||
| Optical return loss tolerance | ORL | - | - | 21.4 | dB | - | |||
Receiver |
|||||||||
| Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
| Data rate,each lane | - | 53.125±100ppm | GBd | - | |||||
| Average receive power,each lane | - | -5.9 | - | 4 | dBm | - | |||
| Receive power(OMAouter),each lane | - | - | - | 4.2 | dBm | - | |||
| Receiver sensitivity(OMAouter), | - | - | - | -4.4 | dBm | 2 | |||
| LOS asserted | Lsa | -15 | - | - | dBm | - | |||
| LOS de-asserted | Lda | - | - | -8.9 | dBm | - | |||
| LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Averagelaunch power,each lane(min)is informative and notthe principal indicator of signal strength. [2]Atransmitter with launch power below this value cannot be compliant;however,a value abovethis does not ensure compliance. [3]Receiver sensitivity (OMAouter),each lane(max)is informative and is defined for a transmitter with SECQ of 0.9dB. |
|||||||||
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

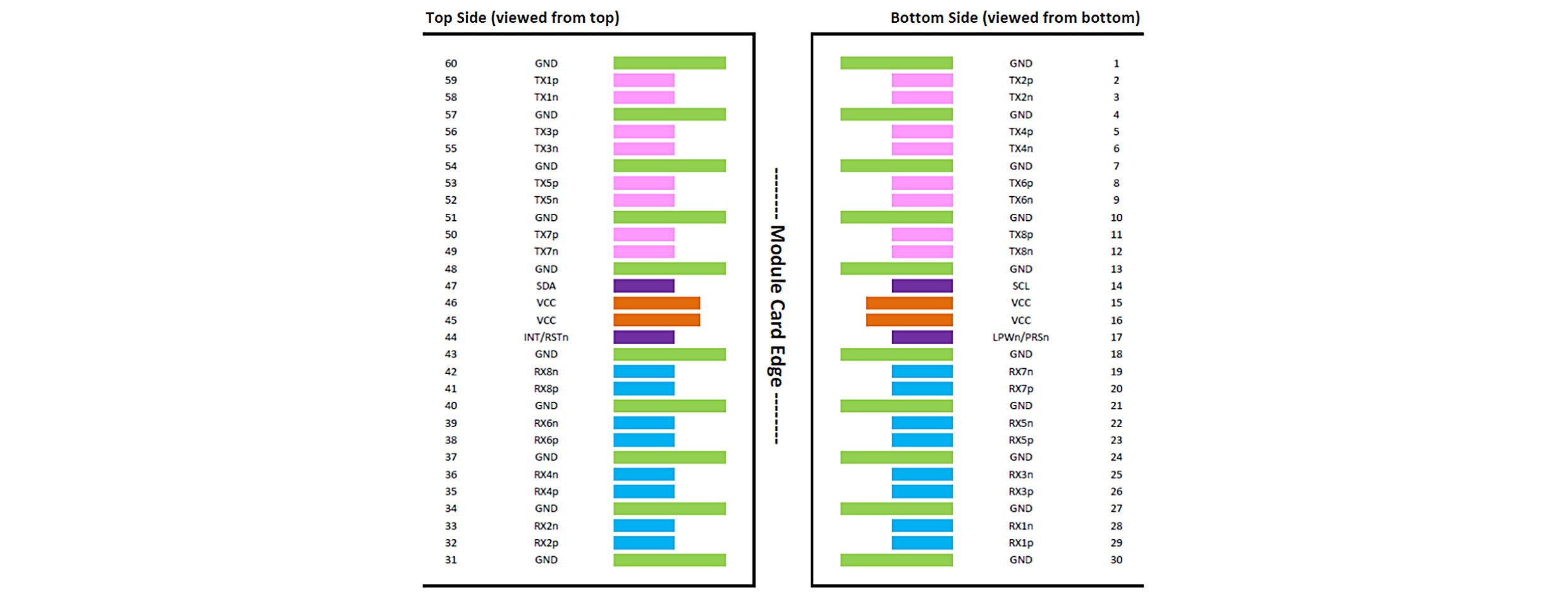

| Pin | Symbol | Name/Description | |||||||
| 1 | GND | Ground | |||||||
| 2 | TX2p | Transmitter data non-inverted | |||||||
| 3 | TX2n | Transmitter dataInverted | |||||||
| 4 | GND | Ground | |||||||
| 5 | Tx4p | Transmitter data non-inverted | |||||||
| 6 | TX4n | Transmitter data inverted | |||||||
| 7 | GND | Ground | |||||||
| 8 | TX6p | Transmitter data non-inverted | |||||||
| 9 | TX6n | Transmitter data inverted | |||||||
| 10 | GND | Ground | |||||||
| 11 | TX8p | Transmitter data non-inverted | |||||||
| 12 | TX8n | Transmitter data inverted | |||||||
| 13 | GND | Ground | |||||||
| 14 | SCL | 2-wire serial interface clock | |||||||
| 15 | VCC | +3.3V power | |||||||
| 16 | VCC | +3.3V power | |||||||
| 17 | LPWn/PRSn | Low-power mode/module present | |||||||
| 18 | GND | Ground | |||||||
| 19 | RX7n | Receiver data inverted | |||||||
| 20 | RX7p | Receiver data non-inverted | |||||||
| 21 | GND | Ground | |||||||
| 22 | RX5n | Receiver data inverted | |||||||
| 23 | RX5p | Receiver data non-inverted | |||||||
| 24 | GND | Ground | |||||||
| 25 | RX3n | Receiver data inverted | |||||||
| 26 | RX3p | Receiver data non-inverted | |||||||
| 27 | GND | Ground | |||||||
| 28 | RX1n | Receiver data inverted | |||||||
| 29 | RX1p | Receiver data non-inverted | |||||||
| 30 | GND | Ground | |||||||
| 31 | GND | Ground | |||||||
| 32 | RX2p | Receiver data non-inverted | |||||||
| 33 | RX2n | Receiver data inverted | |||||||
| 34 | GND | Ground | |||||||
| 35 | RX4p | Receiver data non-inverted | |||||||
| 36 | RX4n | Receiver data inverted | |||||||
| 37 | GND | Ground | |||||||
| 38 | RX6p | Receiver data non-inverted | |||||||
| 39 | RX6n | Receiver data inverted | |||||||
| 40 | GND | Ground | |||||||
| 41 | RX8p | Receiver data non-inverted | |||||||
| 42 | RX8n | Receiver data inverted | |||||||
| 43 | GND | Ground | |||||||
| 44 | INT/RSTn | Module interrupt/module reset | |||||||
| 45 | VCC | +3.3V power | |||||||
| 46 | VCC | +3.3V power | |||||||
| 47 | SDA | 2-wire serial interface data | |||||||
| 48 | GND | Ground | |||||||
| 49 | TX7n | Transmitter data inverted | |||||||
| 50 | TX7p | Transmitter data non-inverted | |||||||
| 51 | GND | Ground | |||||||
| 52 | TX5n | Transmitter data inverted | |||||||
| 53 | TX5p | Transmitter data non-inverted | |||||||
| 54 | GND | Ground | |||||||
| 55 | TX3n | Transmitter data inverted | |||||||
| 56 | TX3p | Transmitter data non-inverted | |||||||
| 57 | GND | Ground | |||||||
| 58 | TX1n | Transmitter data inverted | |||||||
| 59 | TX1p | Transmitter data non-inverted | |||||||
| 60 | GND | Ground | |||||||
