產品型號
|
JFTSM-SFPCO-1A-01-RJ45-SGMII
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
SFP
|
接口類型
|
RJ45
|
|
最高總速率
|
1000Mbps
|
10G 最大傳輸距離
|
100m
|
|
支持熱插拔
|
YES
|
工作電壓
|
3.3V
|
|
功耗
|
1.05 W
|
支持協議
|
SFP MSA IEEE Std 802.3
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉富(fu)持(chi)續投入光(guang)(guang)(guang)模(mo)塊生(sheng)產領(ling)域，產品(pin)覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光(guang)(guang)(guang)模(mo)塊。同時為下游同行提供TOSA、ROSA、BOSA等光(guang)(guang)(guang)器件(jian)(jian)半成(cheng)品(pin)解決方案。JFOPT嘉富(fu)生(sheng)產線(xian)具(ju)備(bei)日產量一萬只光(guang)(guang)(guang)模(mo)塊、兩萬只光(guang)(guang)(guang)器件(jian)(jian)的能力。此外，JFOPT嘉富(fu)光(guang)(guang)(guang)模(mo)塊擁有業界(jie)領(ling)先的耐高溫、抗干擾特性，廣泛(fan)應用于計算(suan)中心(xin)、運(yun)營商、交通安防、電力設施等行業領(ling)域。

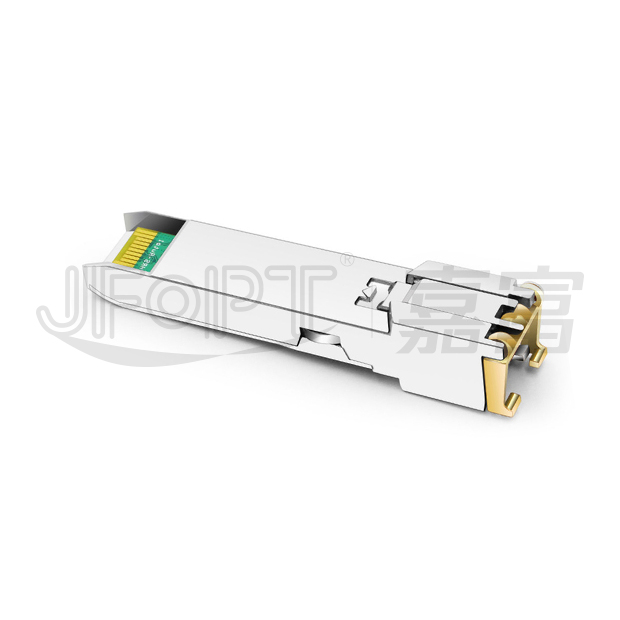

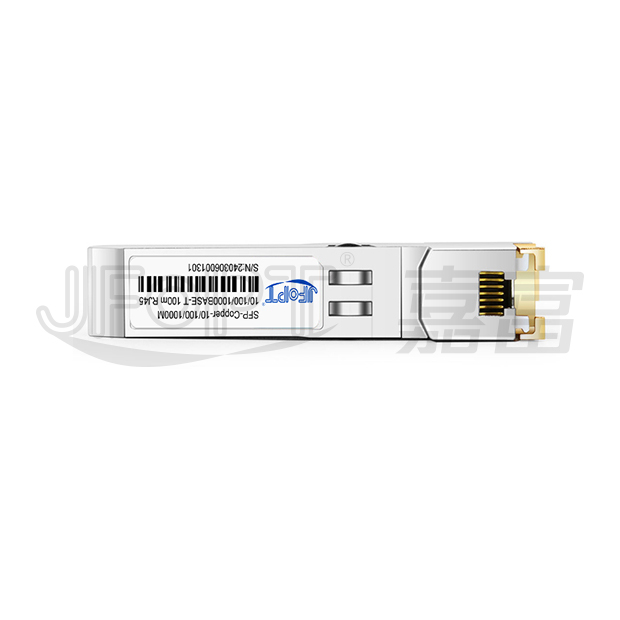

產品介紹
PRODUCT PRESENTATION

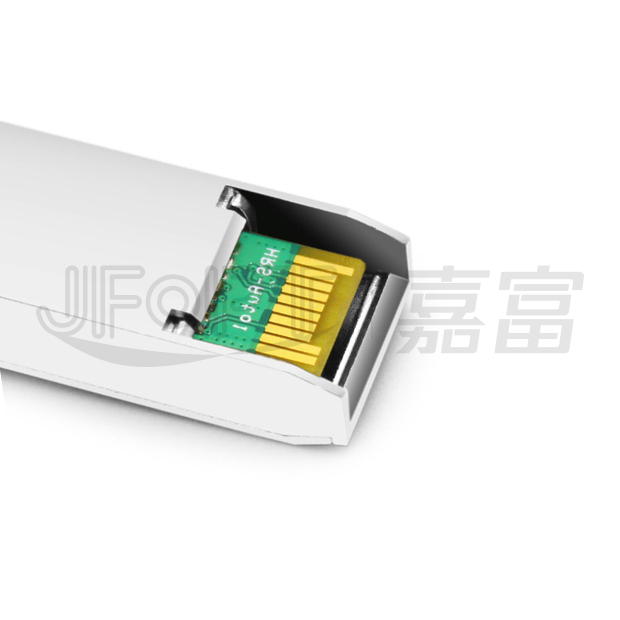

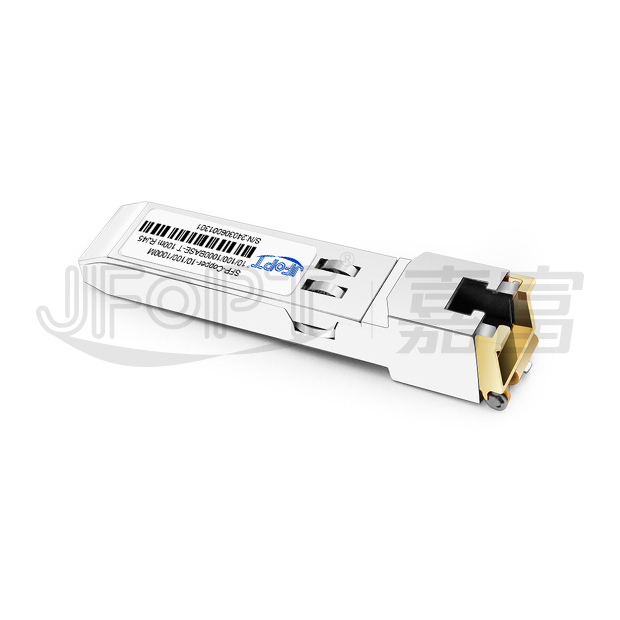

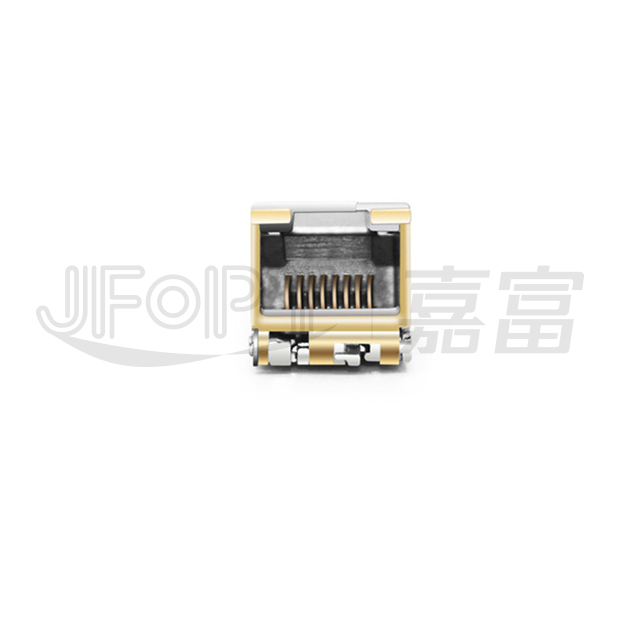

JFOPT SFP-Copper 10/100/1000BASE-T 100m RJ45是(shi)一(yi)款(kuan)多(duo)功能(neng)小(xiao)型(xing)可插拔（SFP）光(guang)模塊，適(shi)用于10/100/1000BASE-T應用場景(jing)，基于SFP多(duo)源協(xie)議（MSA）標準開發。該光(guang)模塊符合IEEE STD 802.3規定(ding)的(de)千兆以太網標準，可確(que)保在10/100/1000BASE-T網絡中的(de)可靠(kao)運行。

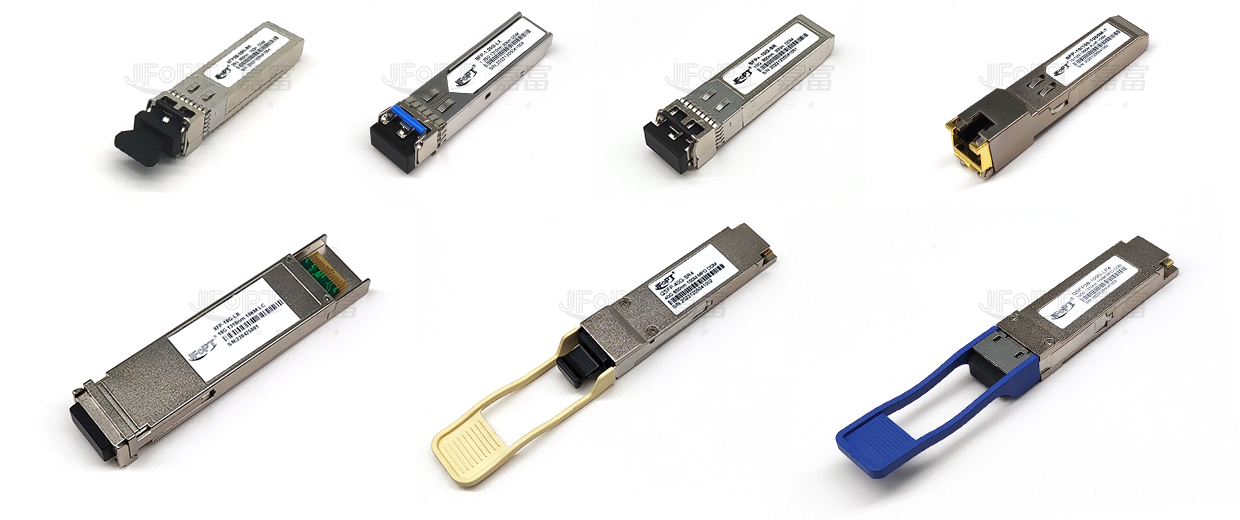

光模塊系列產品
TRANSCEIVER SERIES PRODUCTS

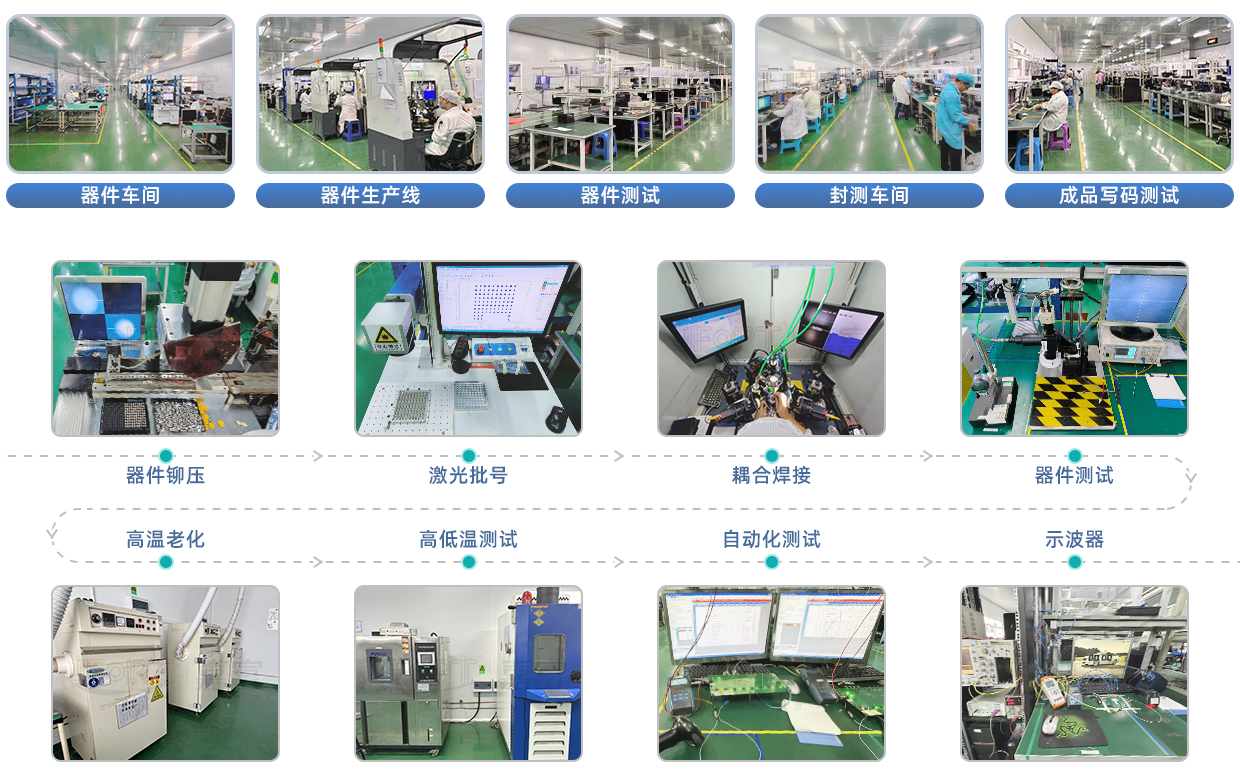

生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
| Support 10/100/1000BASE-T Operation in Host Systems with SGMII interface | 100m transmission over Cat 5 UTP Cable | ||||||||
| Hot-Pluggable SFP Footprint | Fully metallic enclosure for low EMI | ||||||||
| Low power dissipation (1.05 W typical) | Compact RJ-45 connector assembly | ||||||||
| Access to physical layer IC via 2-wire serial bus | Detailed product information in EEPROM | ||||||||
|
Operating Case Temperature
Standard：0℃~70℃
Industrial: -40℃~85℃
|
Compliant with SFP MSA | ||||||||
| Compliant with IEEE Std 802.3 |
應用范圍
APPLICATION
符合標準
STANDARD COMPLIANCE
訂購信息
ORDER INFORMATION
| Part No. | Data Rate | Link type | Distance | RX_LOS | Temp. | |||
| JFTSM-SFPCO-1A-01-RJ45-SGMII | Line side: 10/100/1000BASE-T preferred Masters Host side: SGMII |
Cat5 | 100m | YES(only 1G) | Standard | |||
Note: 10/100/1000Mbps enable the auto-negotiation, preferred Master.
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Typ | Max. | ||||
| Maximum supply voltage | Vcc | -0.5 | - | 4.0 | ||||
| Storage temperature | TS | -40 | - | 85 | ||||
正常工作條件
NORMAL OPERATING CONDITION
| Parameter | Symbol | Min | Typ | Max | Units | |||
| Operating case temperature | Tc | 0 | - | 70 | °C | |||
| -40 | - | 85 | ||||||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | |||
| Date rate | - | 10 | - | 1000 | Mbps | |||
電氣特性
ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | ||
| +3.3 Volt Electrical Power Interface |
||||||||
| Supply current | Icc | - | 300 | 350 | mA | - | ||
| Input voltage | Vcc | 3.13 | 3.3 | 3.45 | V | - | ||
| Surge vurrent | Isurge | - | - | 30 | mA | - | ||
Low-Speed Signals, Electronic Characteristics |
||||||||
| SFP output low | VOL | 0 | - | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP output high | VOH | host_Vcc-0.5 | - | host_Vcc+0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP input low | VIL | 0 | - | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
| SFP input high | VIH | 2 | - | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
High-Speed Electrical Interface, Transmission Line-SFP |
||||||||
| Line baud rates | fL | - | 125 | - | MHz | MLT-3 encoding per IEEE802.3u | ||
| TX output impedance | Zout, TX |
 -
|
100 | - | Ohm | Differential, AC coupled Internally | ||
| RX input impedance | Zin, RX | - | 100 | - | Ohm | Differential, AC coupled Internally | ||
High-Speed Electrical Interface, Host-SFP |
||||||||
| Single ended data input swing | Vin | 250 | - | 1200 | mV | Single ended | ||
| Single ended data output swing | Vout | 300 | - | 1000 | mV | Single ended | ||
| Rise/Fall time | Tr, Tf | - | 175 | - | psec | 20%-80% | ||
| TX Iinput impedance | Zin | - | 50 | - | Ohm | Single ended | ||
| RX output impedance | Zout | - | 50 | - | Ohm | Single ended | ||
一般規格
GENERAL SPECIFICATIONS
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | ||
| Data rate | - | 10 | - | 1000 | Mbps | - | ||
| Distance | - | - | - | 100 | m | Category 5 UTP. BER <10-12 | ||
引腳說明
PIN DESCRIPTIONS
| Pin No. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter Ground | 1 | - | ||||
| 2 | TX Fault | Transmitter Fault Indication | 3 | Not used | ||||
| 3 | TX Disable | Transmitter Disable | 3 | 1 | ||||
| 4 | MOD-DEF2 | Module Definition 2 | 3 | 2 | ||||
| 5 | MOD-DEF1 | Module Definition 1 | 3 | 2 | ||||
| 6 | MOD-DEF0 | Module Definition 0 | 3 | 2 | ||||
| 7 | Rate Select | Not Connected | 3 | - | ||||
| 8 | LOS | Loss of Signal | 3 | Not Used | ||||
| 9 | VeeR | Receiver Ground | 1 | - | ||||
| 10 | VeeR | Receiver Ground | 1 | - | ||||
| 11 | VeeR | Receiver Ground | 1 | - | ||||
| 12 | RD- | Inv. Received Data Out | 3 | - | ||||
| 13 | RD+ | Received Data Out | 3 | - | ||||
| 14 | VeeR | Receiver Ground | 1 | - | ||||
| 15 | VccR | Receiver Power | 2 | - | ||||
| 16 | VccT | Transmitter Power | 2 | - | ||||
| 17 | VeeT | Transmitter Ground | 1 | - | ||||
| 18 | TD+ | Transmit Data In | 3 | - | ||||
| 19 | TD- | Inv. Transmit Data In | 3 | - | ||||
| 20 | VeeT | Transmitter Ground | 1 | - | ||||
1. PHY disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V, used to reset the module.
2. Should be pulled up with 4.7k – 10k ohm on host board to a voltage between 2.0 V and 3.6 V. MOD_DEF (0) pulls line low to indicate module is plugged in.

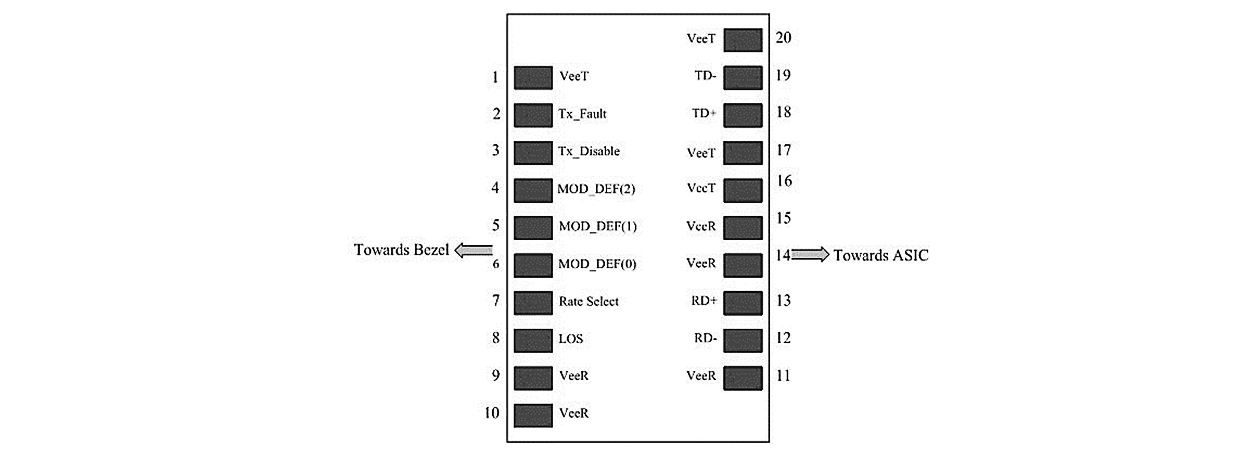

The following is the Diagram of host board connector pin numbers and names
串行通信協議
SERIAL COMMUNICATION PROTOCOL
JFOPT Copper SFP support the 2-wire serial communication protocol defined in the SFP MSA. These SFP use a 128 byte EEPROM with an address of A0H. The 10/100/1000BASE-T physical layer IC can also be accessed via the 2-wire serial bus at address ACH.

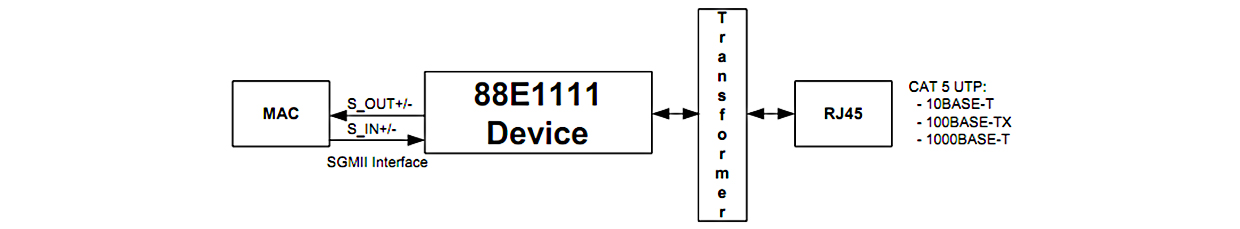

SGMII轉銅模式
SGMII TO COPPER MODES
EEPROM串行ID存儲器內容
EEPROM SERIAL ID MEMORY CONTENTS
Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.
Table 1 Serial ID Memory Contents |
||||||||
| Addr. | Size (Bytes) |
Name of Field | Hex | Description | ||||
BASE ID FIELDS |
||||||||
| 0 | 1 | Identifier | 03 | SFP | ||||
| 1 | 1 | Ext. Identifier | 04 | SFP function is defined by serial ID only | ||||
| 2 | 1 | Connector | 22 | RJ-45 | ||||
| 3- 10 | 8 | Transceiver | 00 00 00 08 00 00 00 00 | Transceiver Code | ||||
| 11 | 1 | Encoding | 01 | 8B10B | ||||
| 12 | 1 | BR, Nominal | 0D | 1.25G | ||||
| 13 | 1 | Reserved | 00 | - | ||||
| 14 | 1 | Length (9µm)km | 00 | Transceiver transmit distance |
||||
| 15 | 1 | Length(9µm)100m | 00 | |||||
| 16 | 1 | Length (50µm) 10m | 00 | |||||
| 17 | 1 | Length(62.5µm)10m | 00 | |||||
| 18 | 1 | Length (Copper) | 64 | 100m | ||||
| 19 | 1 | Reserved | 00 | - | ||||
| 20-35 | 16 | Vendor name | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 |
Vendor name (ASCII) | ||||
| 36 | 1 | Reserved | 00 | - | ||||
| 37-39 | 3 | Vendor OUI | XX XX XX | - | ||||
| 40-55 | 16 | Vendor PN | XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX |
Transceiver part number | ||||
| 56-59 | 4 | Vendor rev | XX XX XX XX | - | ||||
| 60-61 | 2 | Wavelength | 00 | - | ||||
| 62 | 1 | Reserved | 00 | - | ||||
| 63 | 1 | CC_BASE | Check Sum (Variable) | Check code for Base ID Fields | ||||
| EXTENDED ID FIELDS |
||||||||
| 64-65 | 2 | Options | 00 00 | TX_DISABLE, TX_FAULT and Loss of Signal implemented. | ||||
| 66 | 1 | BR,max | 00 | - | ||||
| 67 | 1 | BR,min | 00 | - | ||||
| 68-83 | 16 | Vendor SN | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 |
Serial Number of transceiver(ASCII). For example “B000822” . | ||||
| 84-91 | 8 | Date code | XX XX XX XX XX XX XX XX |
Manufacture date code. For example “080405” . | ||||
| 92 | 1 | Diagnostic Monitoring Type |
XX | Digital diagnostic monitoring implemented | ||||
| 93 | 1 | Enhanced Options | XX | Optional flags | ||||
| 94 | 1 | SFF_8472 Compliance |
XX | 01 for diagnostics (Rev9.3 SFF-8472). | ||||
| 95 | 1 | CC_EXT | Check Sum (Variable) | Check sum for Extended ID Field. | ||||
| VENDOR SPECIFIC ID FIELDS |
||||||||
| 96-127 | 32 | Vendor Specific | Read only | Depends on customer information | ||||
| 128-255 | 128 | Reserved | Read only | - | ||||
產品包裝
PRODUCT PACKAGING
產品認證
PRODUCT CERTIFICATION

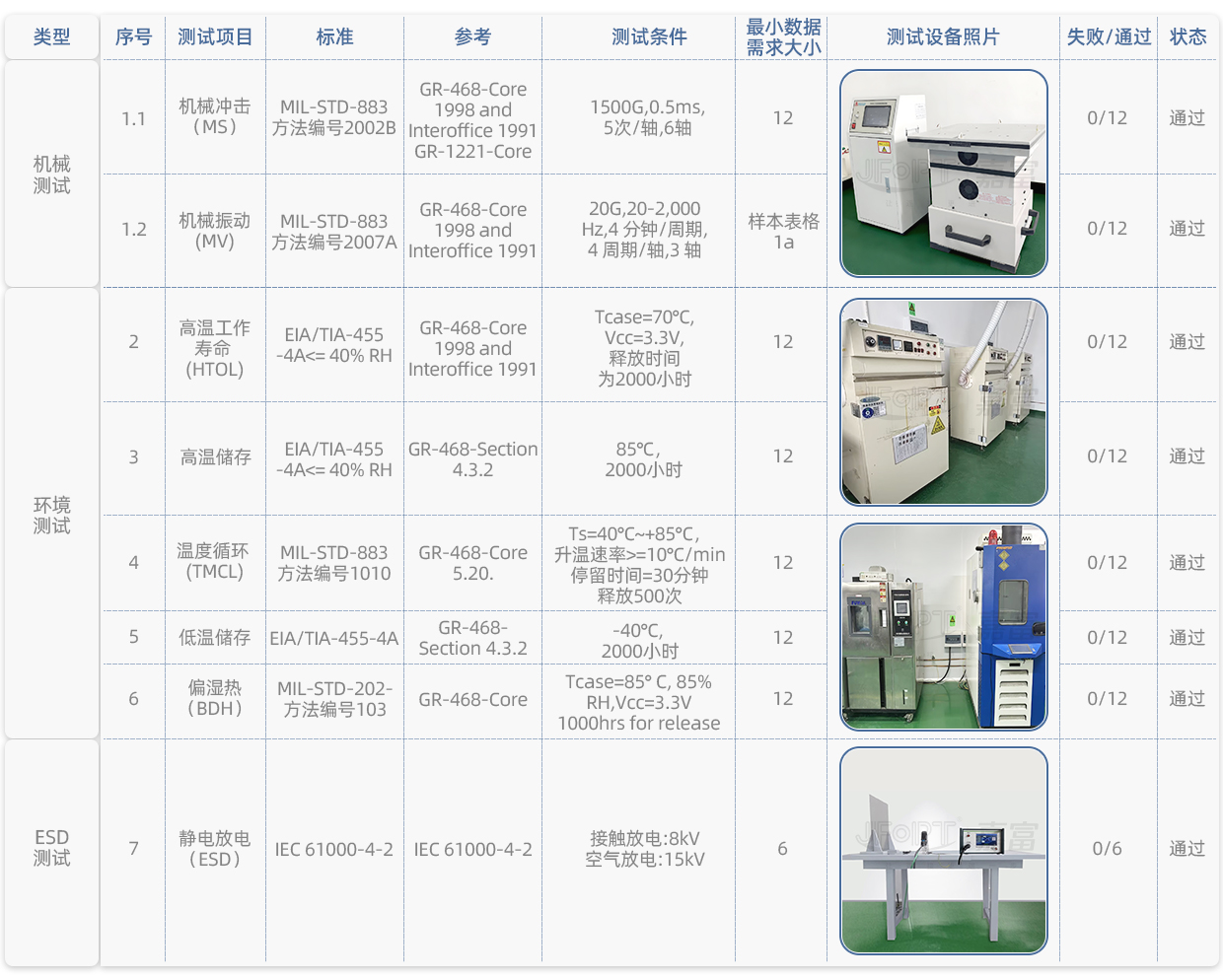

質量優勢
