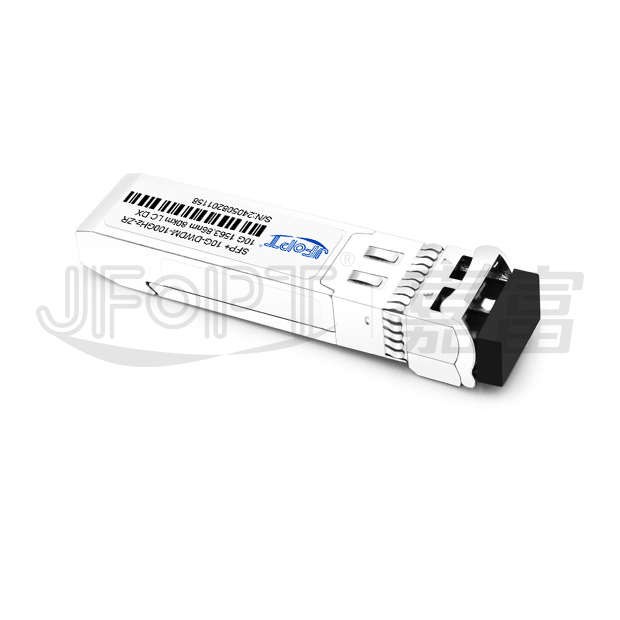

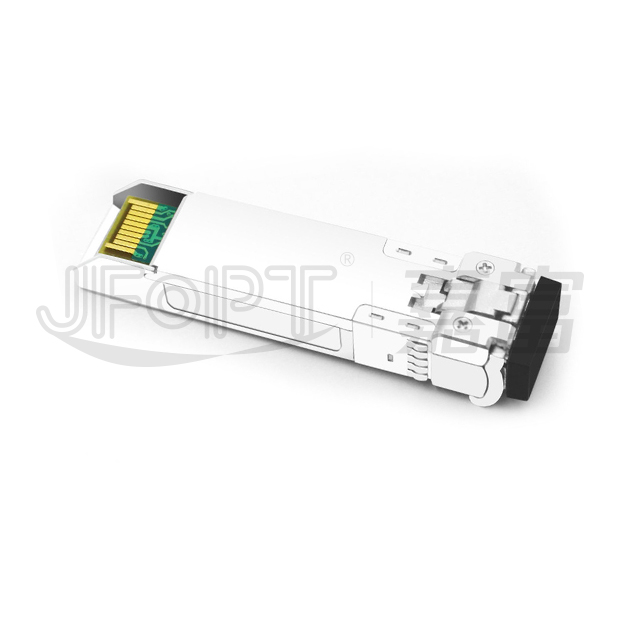

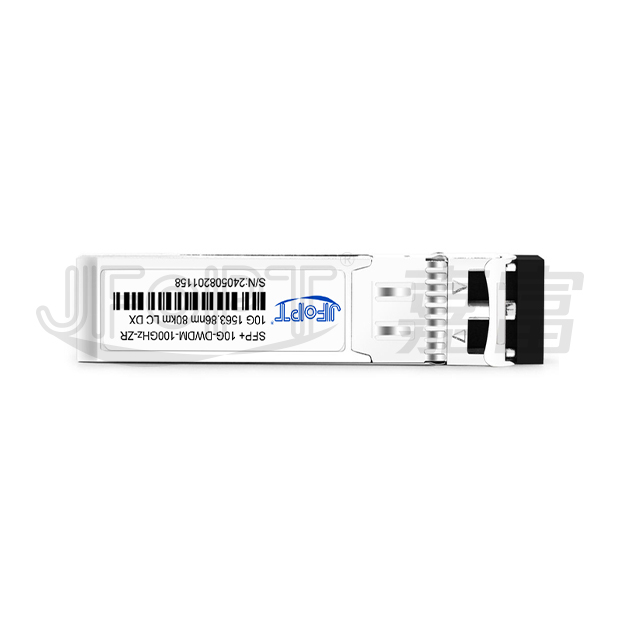

| 產品型號 | JFTSM-SFP+10-100DW-80(ZR)-LCD | 工廠品牌 | JFOPT嘉富 |
| 封裝形式 | SFP+ | 光口類型 | LC duplex |
| 最高總速率 | 11.3Gbps | 每通道速率 | 10.5Gbps |
| 最大傳輸距離 | 80km | ||
| 工作波長 | 1528.77nm to 1563.86nm | 工作電壓 | 3.3V |
| 光纖型號 | SMF | 纖芯尺寸 | 9/125 |
| 發射器類型 | DWDM EML | 接收器類型 | IDP |
| 發射功率 | 0~4dBm | 接收靈敏度 | -23dBm |
| 數字診斷 | YES | 接收過載 | -7dBm |
| 功耗 | C<1.5W,I<1.8W | 支持協議 | SFF-8431 MSA
SFF-8432 MSA
|
| 工作溫度(商業級) | 0℃~+70℃ | 儲存溫度（商業級） | -40℃~+85℃ |
| 工作溫度(工業級) | -40℃~+85℃ | 儲存溫度（工業級） | -40℃~+85℃ |
JFOPT嘉富持續投入光(guang)(guang)模塊生(sheng)產(chan)領域，產(chan)品覆(fu)蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列(lie)光(guang)(guang)模塊。同時為下游(you)同行(xing)提供TOSA、ROSA、BOSA等(deng)光(guang)(guang)器(qi)件半(ban)成品解決方案。JFOPT嘉富生(sheng)產(chan)線具備(bei)日產(chan)量一萬只光(guang)(guang)模塊、兩萬只光(guang)(guang)器(qi)件的能力。此外(wai)，JFOPT嘉富光(guang)(guang)模塊擁有(you)業(ye)界領先的耐高溫、抗(kang)干擾特性，廣泛應用于計算中(zhong)心、運營商(shang)、交通安防、電(dian)力設(she)施(shi)等(deng)行(xing)業(ye)領域。
JFOPT SFP+ 10G 100GHz DWDM 80km ZR LC DX系列(lie)單模收發(fa)器(qi)是一款緊湊型可插拔(ba)模塊，專為雙工(gong)光數據通信設計；該模塊嚴格遵循ITU-T標準，在(zai)1528nm至1566nm標稱(cheng)DWDM波長范圍內全范圍覆(fu)蓋(gai)，特別(bie)適用于(yu)城域接入網與(yu)核心網的DWDM網絡設備部署，并完全兼(jian)容SFF-8431及SFF-8432 MSA規范。

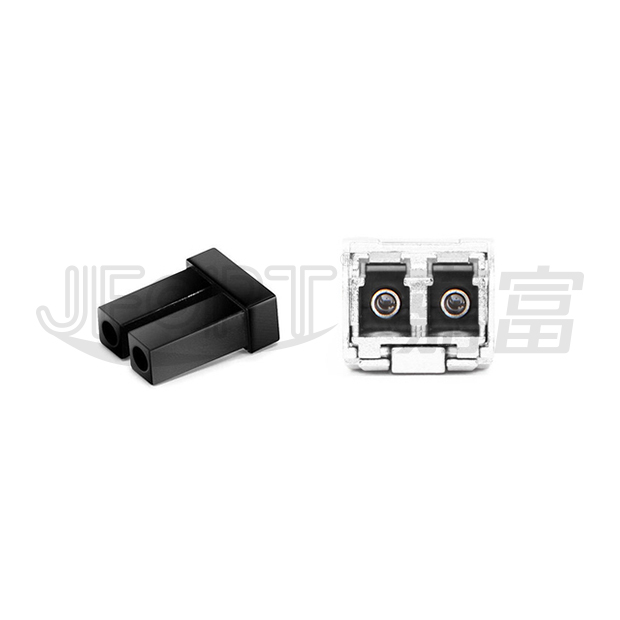

| Available in all C-band wavelengths on the 100GHz DWDM ITU grid | Duplex LC connector | ||||||||
| Temperature-stabilized DWDM EML transmitter | Power dissipation (0℃ to 70℃) < 1.5W | ||||||||
| Power dissipation (-40℃ to 85℃) < 1.8W | Dispersion tolerance: 1600ps/nm | ||||||||
| Hot-pluggable SFP+ footprint | Built-in digital diagnostic functions, including optical power monitoring |
| 10GBASE-ZR/ZW | 10G fiber channel | ||||||||
| OBSAI rates 6.144 Gb/s, 3.072 Gb/s,1.536 Gb/s,0.768Gb/s | CPRI rates 9.830 Gb/s,7.373Gb/s,6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s,1.229 Gb/s, 0.614Gb/s | ||||||||
| Other optical links |
| Parameter | Symbol | Min | Typ. | Max | Unit | Ref. | |||
| Module form factor | BR | 9.95 | - | 10.5 | Gb/s | 1 | |||
| Number of lanes | BER | - | - | 10-12 | - | 2 | |||
| Maximum aggregate data rate | Lmax | - | 80 | - | km | - | |||
*Notes: 1. 10GBASE-ZR, 10GBASE-ZW, 1200-SM-LL-L 10GFC. 2. Tested with a PRBS 231-1 test pattern |
|||||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | ||||
| Storage temperature | Ts | -40 | - | 85 | °C | ||||
| Supply voltage | Vcc | -0.5 | - | 4 | V | ||||
| Operating relative humidity | - | - | - | 85 | % | ||||
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | - | |||
| Power supply current | Icc (0℃ to 70℃) | - | 350 | 455 | mA | - | |||
| Icc (-40℃ to 85℃) | - | 350 | 545 | mA | - | ||||
| Date rate | DR | 0.6 | - | 11.3 | Gbps | Date rate | |||
Transmitter |
|||||||||
| TX_dis | Disable | - | 2 | - | Vcc+0.3 | V | - | ||
| Enable | - | 0 | - | 0.8 | - | ||||
| TX_FAULT | Fault | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.5 | - | ||||
| CML inputs (Differential) | Vin | 250 | - | 1000 | mVpp | AC coupled input | |||
| Input impedance (Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohm @ DC | |||
Receiver |
|||||||||
| CML outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | |||
| RX_LOS | Loss | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 |
 -
|
 0.8
|
- | ||||
| Output impedance(Differential) | Zout | 85 | 100 | 115 | ohm | - | |||
| MOD_DEF ( 0:2 ) | VoH | 2.5 | - | - | V | With serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | ||||
| Data rate | - | 0.6 | - | 11.3 | Gbps | ||||
Transmitter |
|||||||||
| Side mode suppression ratio | SMSR | 30 | - | - | dB | ||||
| Center wavelength spacing | - | - | 100 | - | GHz | ||||
| - | 0.8 | - | nm | ||||||
| Average output power | Pout | 0 | - | 4 | dBm | ||||
| Average launch power (Tx: OFF) | POFF | - | - | -30 | dBm | ||||
| Extinction ratio | ER | 6 | - | - | dB | ||||
| Transmitter dispersion penalty @800ps/nm | TDP | - | - | 3 | dB | ||||
| Pout@TX disable asserted | Pout | - | - | -45 | dBm | ||||
| Relative intensity noise | RIN | - | - | -128 | dB/Hz | ||||
| TX jitter | TXj | Per 802.3ae requirements | |||||||
Receiver |
|||||||||
| Receiver sensitivity | Pmin | - | - | -23 | dBm | ||||
| Receiver overload | Pmax | -7 | - | - | dBm | ||||
| LOS de-assert | LOSD | - | - | -24 | dBm | ||||
| LOS assert | LOSA | -40 | - | - | dBm | ||||
| LOS hysteresis | - | 0.5 | - | - | dB | ||||
*Notes: 1. Output is coupled into a 9/125μm single-mode fiber. 2. Minimum average optical power measured at the BER less than 1E-12. The measurepattern is PRBS 231-1. 3. CML logic, internally AC coupled. |
|||||||||
| Channel | Frequency (THz) | Center wavelength(nm) | Channel | Frequency (THz) | Center wavelength(nm) | ||||
| 17 | 191.7 | 1563.86 | 40 | 194 | 1545.32 | ||||
| 18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 | ||||
| 19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 | ||||
| 20 | 192 | 1561.41 | 43 | 194.3 | 1542.94 | ||||
| 21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 | ||||
| 22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 | ||||
| 23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 | ||||
| 24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 | ||||
| 25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 | ||||
| 26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 | ||||
| 27 | 192.7 | 1555.75 | 50 | 195 | 1537.4 | ||||
| 28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 | ||||
| 29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 | ||||
| 30 | 193 | 1553.33 | 53 | 195.3 | 1535.04 | ||||
| 31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 | ||||
| 32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 | ||||
| 33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 | ||||
| 34 | 193.4 | 1550.12 | 57 | 195.7 | 1531.9 | ||||
| 35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.12 | ||||
| 36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 | ||||
| 37 | 193.7 | 1547.72 | 60 | 196 | 1529.55 | ||||
| 38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 | ||||
 39
|
193.9 | 1546.12 | - | - | - | ||||

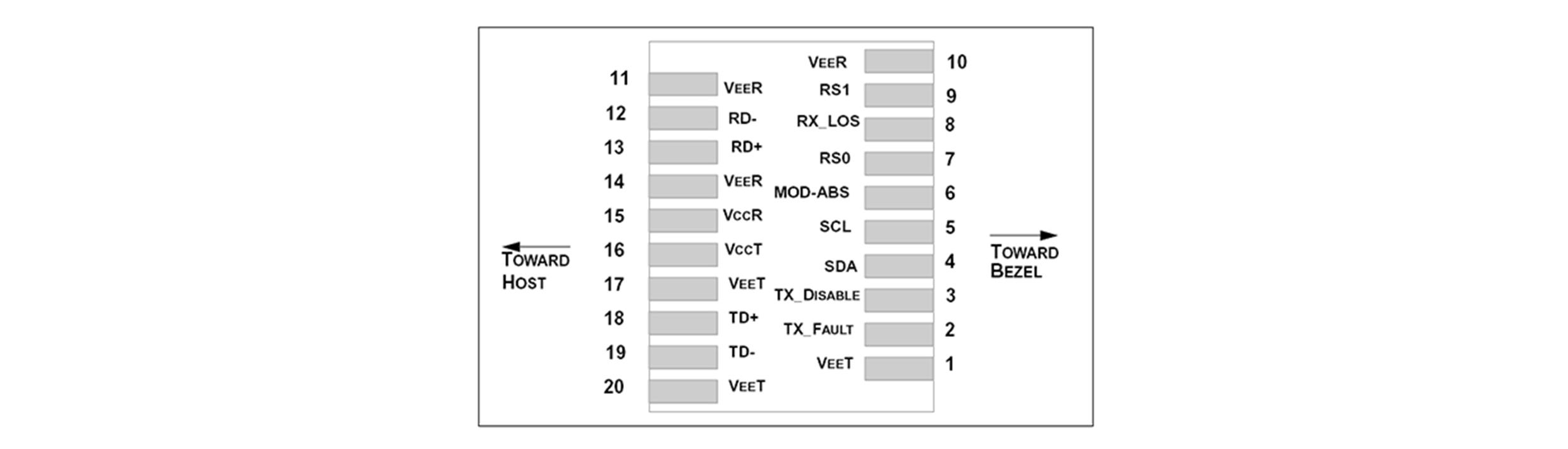

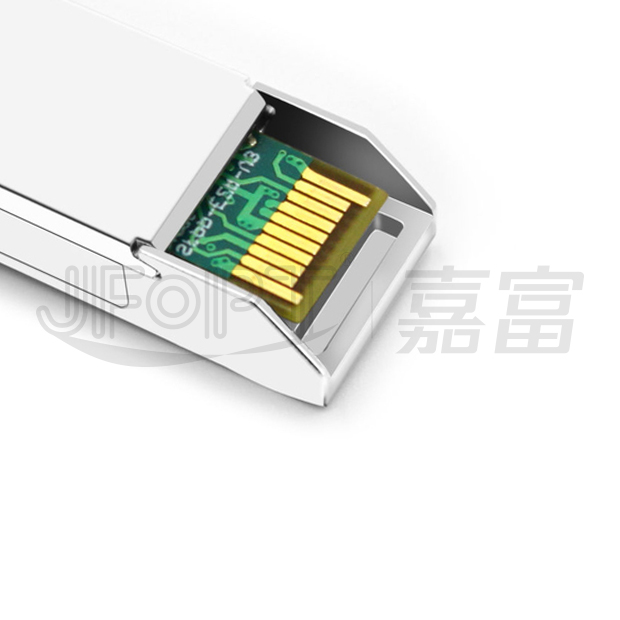

| Pin Num. | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | Note 5 | |||||
| 2 | TX fault | Transmitter fault indication | 3 | Note 1 | |||||
| 3 | TX disable | Transmitter disable | 3 | Note 2, module disables on high or open | |||||
| 4 | SDA | Module definition 2 | 3 | Note 3, data line for serial ID. | |||||
| 5 | SCL | Module definition 1 | 3 | Note 3, clock line for serial ID. | |||||
| 6 | MOD_ABS | Module definition 0 | 3 | Note 3 | |||||
| 7 | RS0 | RX rate select(LVTTL). | 3 | Rate select 0, optionally controls SFP+ module receiver. This pin is pulled low to VeeT with a>30K resistor.. | |||||
| 8 | LOS | Loss of signal | 3 | Note 4 | |||||
| 9 | RS1 | TX rate select(LVTTL). | 1 | Rate select 1, optionally controls SFP+ module transmitter. This pin is pulled low to VeeT with a >30K resistor. | |||||
| 10 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 11 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 12 | RD- | Inv. received data out | 3 | Note 6 | |||||
| 13 | RD+ | Received data out | 3 | Note 7 | |||||
| 14 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 15 | VccR | Receiver power | 2 | 3.3V ± 5%, Note 7 | |||||
| 16 | VccT | Transmitter power | 2 | 3.3V ± 5%, Note 7 | |||||
| 17 | VeeT | Transmitter ground | 1 | Note 5 | |||||
| 18 | TD+ | Transmit data in | 3 | Note 8 | |||||
| 19 | TD- | Inv. transmit data in | 3 | Note 8 | |||||
| 20 | VeeT | Transmitter ground | 1 | Note 5 | |||||
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K - 10K resistor on the host board. Pull up voltage between 2.0V and VccT, R+0.3V. When high,output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V
2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7-10 K_x0002_resistor.
Its states are: Low (0 - 0.8V): Transmitter on(>0.8, < 2.0V): Undefined High (2.0 - 3.465V):Transmitter Disabled Open: Transmitter Disabled
3) Module absent, connected to VEET or VEER in the module.
4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K–10K resistor. Pull up voltage between 2.0V and VccT, R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) VeeR and VeeT may be internally connected within the SFP+ module.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100 differential lines which should be terminated with100(differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internall connected within the SFP+ transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100 differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
