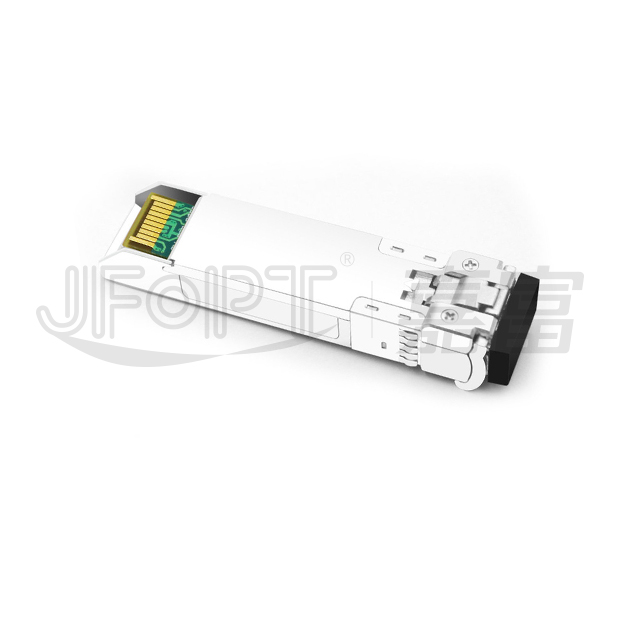

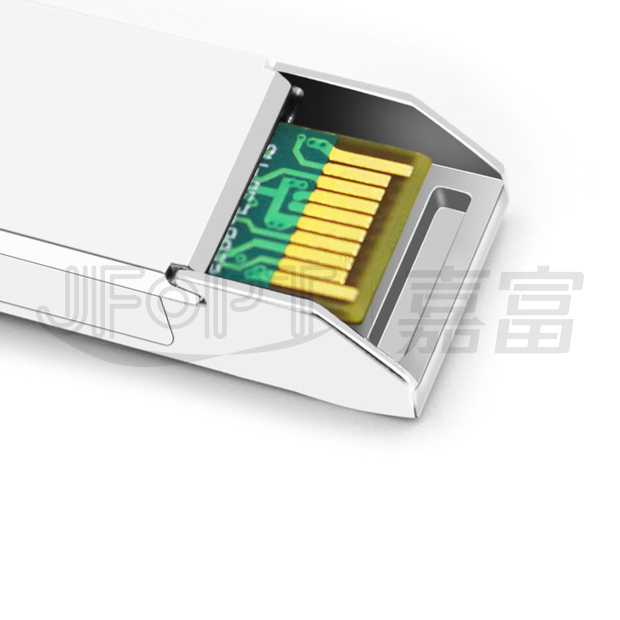

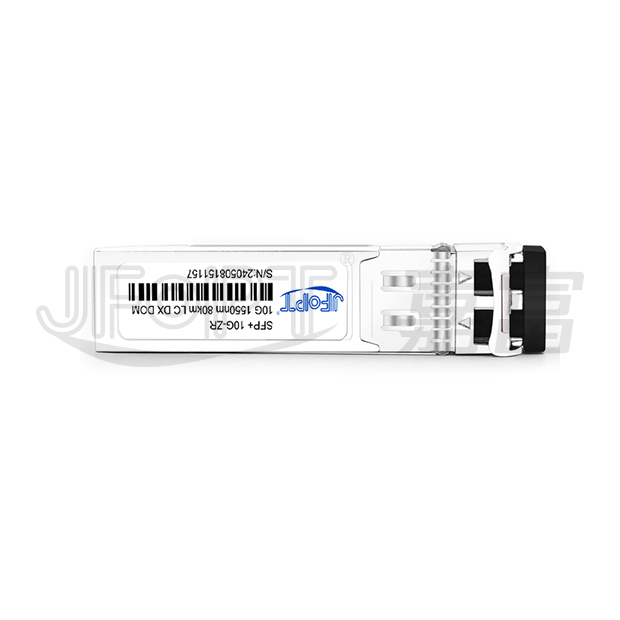

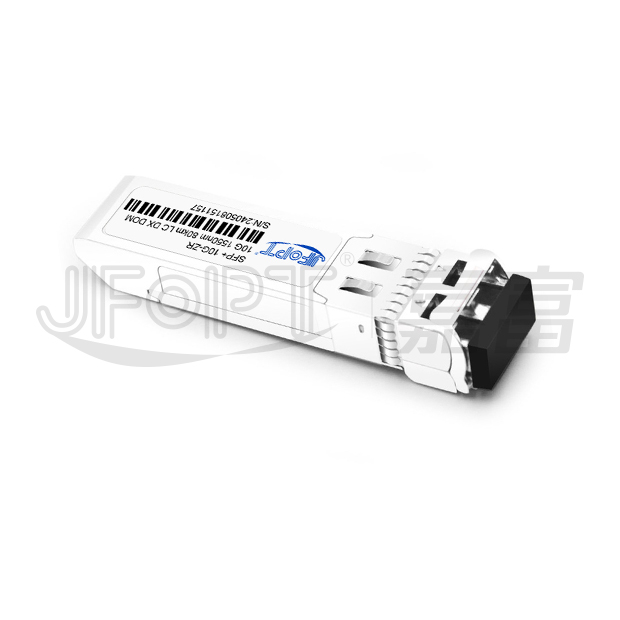

產品型號
|
JFTSM-SFP+10-15-40(ER)/80(ZR)/100(EZR)-LCD
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
SFP+
|

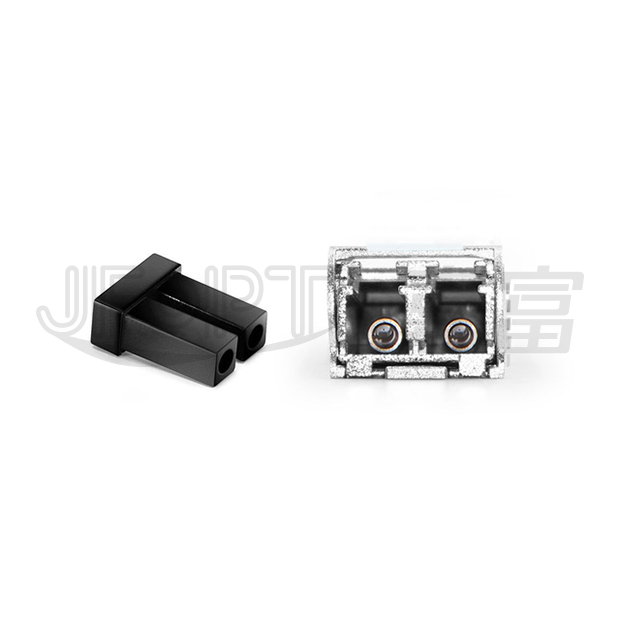

光口類型
|
LC Duplex
|
|
最高總速率
|
11.3Gbps/10.3125Gbps
|
每通道速率
|
10.31Gbps
|
|
最大傳輸距離
|
40km,80km,100km
|
||
|
工作波長
|
1550nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
EML
|
接收器類型
|
IDP
|
|
發射功率
|
-1dBm,0~5dBm,1.5~5dBm
|
接收靈敏度
|
-14.4dBm,-15dBm,-20dBm
|
|
數字診斷
|
YES
|
接收過載
|
0.5dBm,-8dBm
|
|
功耗
|
SFP+10-15-40(ER)-LCD＜1.5W (Typical<1W)
|
SFP+10-15-80(ZR)-LCD＜1.5W
|
SFP+10-15-100(EZR)-LCD＜2W
|
|
支持協議
|
SFF-8431
SFF-8432
SFF-8472
|
||
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
|
工作溫度(擴展級)
|
-20℃~+75℃
|
儲存溫度（擴展級）
|
-40℃~+85℃
|
JFOPT嘉富持(chi)續投入光(guang)(guang)模(mo)塊生產領域，產品(pin)覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光(guang)(guang)模(mo)塊。同(tong)時為下游同(tong)行(xing)提供TOSA、ROSA、BOSA等光(guang)(guang)器件半(ban)成品(pin)解決方案。JFOPT嘉富生產線(xian)具備日產量一萬(wan)只(zhi)光(guang)(guang)模(mo)塊、兩萬(wan)只(zhi)光(guang)(guang)器件的(de)能力。此外，JFOPT嘉富光(guang)(guang)模(mo)塊擁(yong)有業界領先的(de)耐高溫、抗干擾(rao)特性，廣泛應用于計(ji)算中心、運(yun)營商(shang)、交通安(an)防、電力設施等行(xing)業領域。
JFOPT SFP+ 10G 1550nm 40/80/100km LC DX 系列單模光(guang)模塊(kuai)是一款緊湊型可(ke)插拔(ba)模塊(kuai)，專為高達(da)10Gbps速率的(de)雙(shuang)工光(guang)數據(ju)通信(xin)設計(ji)。該模塊(kuai)配(pei)備20-pin SFP+接口，支持熱插拔(ba)功能(neng)，針(zhen)對單模光(guang)纖優化設計(ji)，工作波長為1550nm：其(qi)發射端(duan)(duan)采用符(fu)合IEC-60825 Class 1激光(guang)安全標準的(de)1550nm電吸(xi)收調制(zhi)激光(guang)器(EML)；接收端(duan)(duan)集(ji)成先進(jin)光(guang)檢(jian)測系統——包含光(guang)學頭內(nei)封裝的(de)銦鎵砷(shen)(InGaAs)探(tan)測器前置放大器(IDP)及限幅后置放大器集(ji)成電路，確(que)保超長距離傳(chuan)輸中的(de)可(ke)靠信(xin)號處理性能(neng)。
| 1550nm EML transmitter | Distance up to 40km/80km/100km over SMF | ||||||||
| Single 3.3V power supply and TTL logic interface | Duplex LC connector interface | ||||||||
| Hot pluggable | Operating case temperature Standard: 0℃~+70℃ Industrial:-40℃~85℃ |
| 10GBASE-ER/EW or 10GBASE-ZR/ZW | 8G/10G FC | ||||||||
| OBSAI rates 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s | CPRI rates 10.138Gb/s ,9.830Gb/s,7.373Gb/s, 6.144 Gb/s, 4.915Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s | ||||||||
| Other optical links |
| Part No. | Data Rate | Laser | Temp. | Distance | Optical Interface | CDR | DDMI | ||
| JFTSM-SFP+10-15-40(ER)-LCD | 0.6Gbps to 11.3Gbps | 1550nm EML | Standard | 40km | LC | No | YES | ||
| Industrial | |||||||||
| JFTSM-SFP+10-15-80(ZR)-LCD | 1550nm EML | Standard | 80km | ||||||
| Industrial | |||||||||
| JFTSM-SFP+10-15-100(EZR)-LCD | Up to 10.3125Gbps | 1550nm EML | Standard | 100km | YES | ||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Storage temperature | TS | -40 | +85 | °C | |||||
| Supply voltage | VCC | -0.5 | 3.6 | V | |||||
Note: Exceeding any one of these values may destroy the device permanently. |
|||||||||
| Parameter | Symbol | Unit | JFTSM-SFP+10-15-40(ER)-LCD | JFTSM-SFP+10-15-80(ZR)-LCD | JFTSM-SFP+10-15-100(EZR)-LCD | ||||||||
| Min. | Typical | Max. | Min. | Typical | Max. | Min. | Typical | Max. | |||||
| Operating case temperature | Tc | Standard | °C | 0 | - | +70 | 0 | - | +70 | 0 | - | 70 | |
| Industrial | °C | -40 | - | +85 | -20 | - | +75 | - | - | - | |||
| Power supply voltage | Vcc | V | 3.15 | 3.3 | 3.45 | 3.15 | 3.3 | 3.45 | 3.135 | 3.3 | 3.465 | ||
| Power supply current | ICC | mA | - | - | 455 | - | - | 455 | - | - | 576 | ||
| Surge current | ISurge | mA | - | - | +30 | - | - | +30 | - | - | +30 | ||
| Baud rate | - | Gbps | 0.6 | - | 11.3 | 0.6 | - | 11.3 | - | - | 10.3125 | ||
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
Transmitter |
|||||||||
| CML inputs(Differential) | Vin | 150 | - | 1200 | mVpp | AC coupled inputs |
|||
| Input impedance(Differential) | Zin | 85 | 100 | 115 | ohms | Rin > 100 kohms @ DC |
|||
| Tx_DISABLE input voltage – high | - | 2 | - | Vcc+0.3 | V | - | |||
| Tx_DISABLE input voltage – low | - | 0 | - | 0.8 | V | - | |||
| Tx_FAULT output voltage – high | - | 2 | - | Vcc+0.3 | V | Io = 400µA; Host Vcc |
|||
| Tx_FAULT output voltage – low | - | 0 | - | 0.5 | V | Io = -4.0mA | |||
Receiver |
|||||||||
| CML outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs |
|||
| Output Impedance (Differential) |
Zout | 85 | 100 | 115 | ohms | - | |||
| Rx_LOS output voltage – high | - | 2 | - |
 Vcc+0.3
|
 V
|
lo = 400µA; Host Vcc |
|||
| Rx_LOS output voltage – low | - | 0 | - | 0.8 | V | lo = -4.0 mA | |||
| MOD_DEF ( 2:0 ) | VoH | 2.5 | - | - | V | With Serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Parameter | Symbol | Unit | JFTSM-SFP+10-15-40(ER)-LCD | JFTSM-SFP+10-15-80(ZR)-LCD | JFTSM-SFP+10-15-100(EZR)-LCD | |||||||
| Min. | Typical | Max. | Min. | Typical | Max. | Min. | Typical | Max. | ||||
| 9µm core diameter SMF | - | km | - | 40 | - | - | 80 | - | - | 100 | - | |
Transmitter |
||||||||||||
| Center wavelength | λC | nm | 1530 | 1550 | 1565 | 1528 | 1550 | 1565 | 1520 | 1550 | 1580 | |
| Spectral width (-20dB) | Δλ | nm | - | - | 1 | - | - | 1 | - | - | 1 | |
| Side mode suppression ratio | SMSR | dB | 30 | - | - | 30 | - | - | 30 | - | - | |
| Average output power | Pout, AVG | dBm | -4.7 | -1 | 4 | 0 | - | - | 1.5 | - | 5 | |
| Optical modulation amplitude | Pout,OMA | dBm | 1.0 | - | - | - | - | - | - | - | - | |
| Extinction ratio | ER | dB | 3.5 | - | - | 3.5 | - | - | 8.2 | - | - | |
| Transmitter and dispersion penalty | TDP | dB | - | - | 2 | - | - | 3 | - | - | - | |
| Average power of OFF transmitter | - | dBm | - | - | -30 | - | - | -30 | - | - | -30 | |
| Relative intensity noise | RIN | dB/Hz | - | - | -128 | - | - | -128 | - | - | -128 | |
| Input differential impedance | ZIN | ? | - | - | - | 90 | 100 | 110 | 90 | 100 | 110 | |
| TX disable assert time | t_off | us | - | - | 10 | - | - | 10 | - | - | - | |
Receiver |
||||||||||||
| Center wavelength | λC | nm | 1530 | - | 1565 | 1260 | - | 1600 | 1260 | - | 1600 | |
| Sensitivity | Pmin | dBm | - | - | -15.8 | - | - | -23 | - | - | -24.5 | |
| Receiver overload | PMAX | dBm | -1 | - | - | -8 | - | - | -8 | - | - | |
| Output differential impedance | PIN | ? | - | - | - | 90 | 100 | 110 | 90 | 100 | 110 | |
| LOS de-assert | LOSD | dBm | - | - | -16.5 | - | - | -24 | - | - | -26 | |
| LOS assert | LOSA | dBm | -30 | - | - | -36 | - | - | -38 | - | - | |

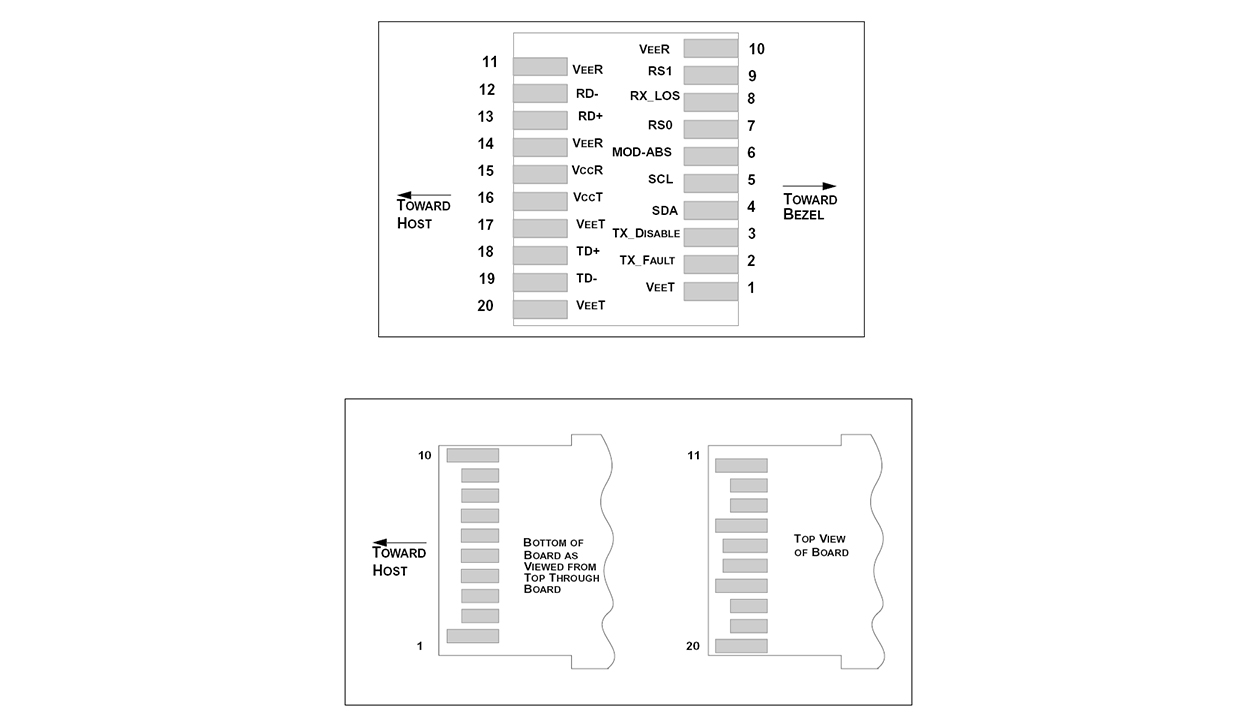

| Pin Num. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
| 2 | TX Fault | Transmitter Fault Indication |
3 | Note 1 | ||||
| 3 | TX Disable | Transmitter Disable | 3 | Note 2, Module disables on high or open |
||||
| 4 | SDA | Module Definition 2 | 3 | 2-wire Serial Interface Data Line. | ||||
| 5 | SCL | Module Definition 1 | 3 | 2-wire Serial Interface Clock. | ||||
| 6 | MOD-ABS | Module Definition 0 | 3 | Note 3 | ||||
| 7 | RS0 | RX Rate Select (LVTTL). |
3 | No Function Implement | ||||
| 8 | LOS | Loss of Signal | 3 | Note 4 | ||||
| 9 | RS1 | TX Rate Select (LVTTL). |
1 | No Function Implement | ||||
| 10 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 11 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 12 | RD- | Inv. Received Data Out | 3 | Note 6 | ||||
| 13 | RD+ | Received Data Out | 3 | Note 6 | ||||
| 14 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 15 | VccR | Receiver Power | 2 | 3.3V ± 5%, Note 7 | ||||
| 16 | VccT | Transmitter Power | 2 | 3.3V ± 5%, Note 7 | ||||
| 17 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
| 18 | TD+ | Transmit Data In | 3 | Note 8 | ||||
| 19 | TD- | Inv. Transmit Data In | 3 | Note 8 | ||||
| 20 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High(2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled
3) Module Absent, connected to VeeT or VeeR in the module.
4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10K? resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100? differential lines which should be terminated with 100? (differential) atthe user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 370 and 700 mV differential (185 –350 mV single ended) when properly terminated.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100? differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 150 – 1200 mV (75 – 600mV single-ended), though it is recommended that values between 150 and 1200 mV differential (75 – 600mV single-ended) be used for best EMI performance.
