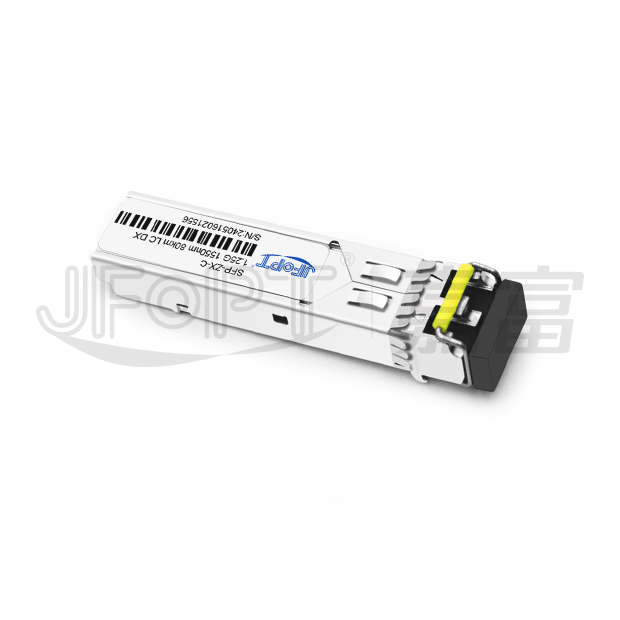

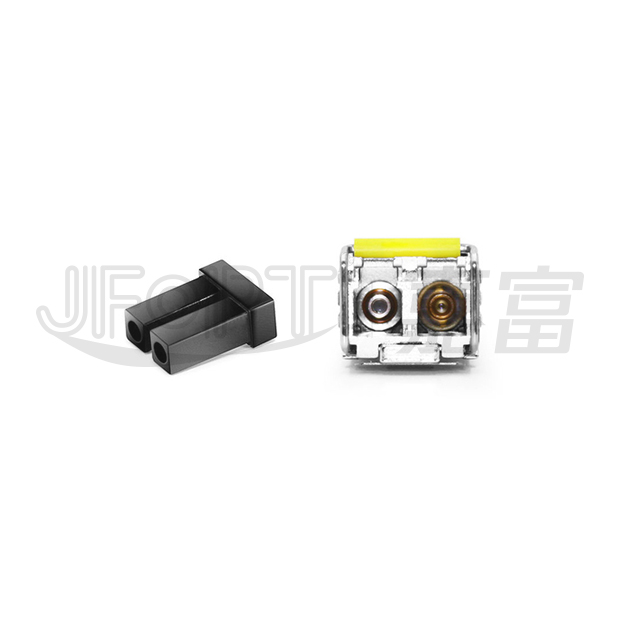

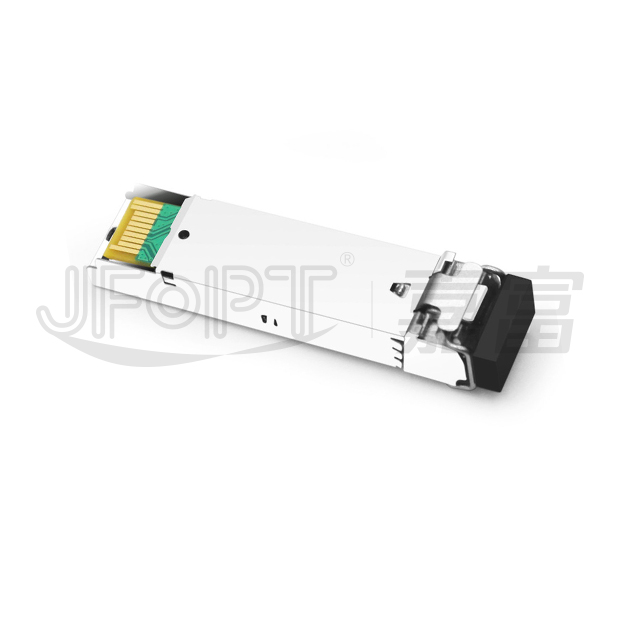

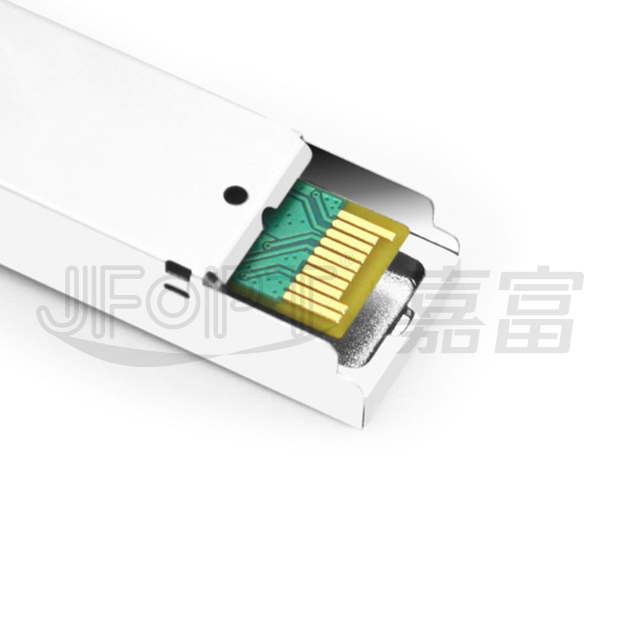

1550nm DFB and PIN, 40km
Parameter			Symbol		Min.	Typical		Max.	Unit
9µm core diameter SMF			L		-	40		-	km
Data rate			-		-	1.063/1.25		-	Gbps
Transmitter
Center wavelength			λC		1500	1550		1580	nm
Spectral width (-20dB)			Δλ		-	-		1	nm
Side mode suppression ratio			SMSR		30	-		-	dB
Average output power			Pout		-5	-		0	dBm
Extinction ratio			ER		9	-		-	dB
Rise/Fall time(20%～80%)			tr/tf		-	-		0.26	ns
Total jitter			TJ		-	-		0.43	UI
Output optical eye			Compliant with IEEE 802.3ah-2004
TX disable assert time			t_off		-	-		10	us
Pout@TX disable asserted			Pout		-	-		-45	dBm
Receiver
Center wavelength			λ		1260	-		1600	nm
Receiver sensitivity			Pmin		-	-		-24	dBm
Receiver overload			Pmax		-3	-		-	dBm
Return loss			-		12	-		-	dB
Optical path penalty			-		-	-		1	dB
LOS de-assert			LOSD		-	-		-25	dBm
LOS assert			LOSA		-35	-		-	dBm
LOS hysteresis			-		0.5	-		-	dB
1550nm DFB and PIN, 60km
Parameter			Symbol		Min.	Typical		Max.	Unit
9µm core diameter SMF			L		-	60		-	km
Data rate			-		-	1.063/1.25		-	Gbps
Transmitter
Center wavelength			λC		1500	1550		1580	nm
Spectral width (-20dB)			Δλ		-	-		1	nm
Side mode suppression ratio			SMSR		30	-		-	dB
Average output power			Pout		-2	-		+3	dBm
Extinction ratio			ER		9	-		-	dB
Rise/Fall time(20%～80%)			tr/tf		-	-		0.26	ns
Total jitter			TJ		-	-		0.43	UI
Output optical eye			Compliant with IEEE 802.3ah-2004
TX disable assert time			t_off		-	-		10	us
Pout@TX disable asserted			Pout		-	-		-45	dBm
Receiver
Center wavelength			λ		1260	-		1600	nm
Receiver sensitivity			Pmin		-	-		-24	dBm
Receiver overload			Pmax		-3	-		-	dBm
Return loss			-		12	-		-	dB
Optical path penalty			-		-	-		1	dB
LOS de-assert			LOSD		-	-		-25	dBm
LOS assert			LOSA		-35	-		-	dBm
LOS hysteresis			-		0.5	-		-	dB

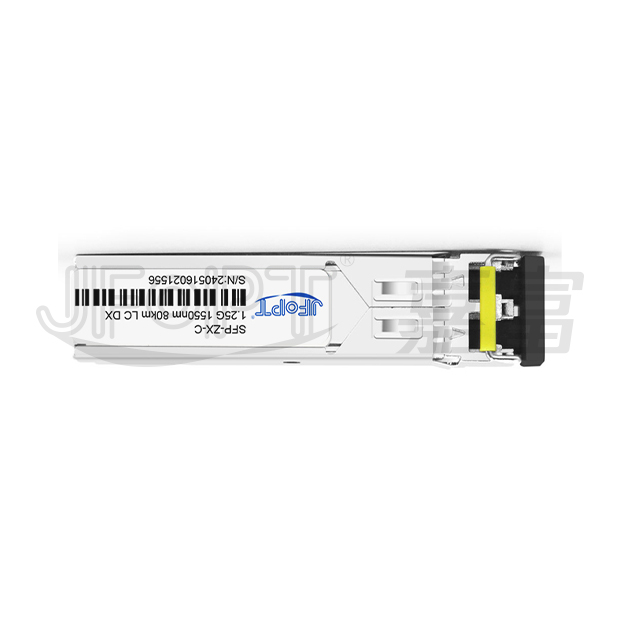

1550nm DFB and PIN, 80km
Parameter			Symbol		Min.	Typical		Max.	Unit
9µm core diameter SMF			L		-	80		-	km
Data rate			-		-	1.063/1.25		-	Gbps
Transmitter
Center wavelength			λC		1500	1550		1580	nm
Spectral width (-20dB)			Δλ		-	-		1	nm
Side mode suppression ratio			SMSR		30	-		-	dB
Average output power			Pout		0	-		5	dBm
Extinction ratio			ER		9	-		-	dB
Rise/Fall time(20%～80%)			tr/tf		-	-		0.26	ns
Total jitter			TJ		-	-		0.43	UI
Output optical eye			Compliant with IEEE 802.3ah-2004
TX disable assert time			t_off		-	-		10	us
Pout@TX disable asserted			Pout		-	-		-45	dBm
Receiver
Center wavelength			λ		1260	-		1600	nm
Receiver sensitivity			Pmin		-	-		-24	dBm
Receiver overload			Pmax		-3	-		-	dBm
Return loss			-		12	-		-	dB
Optical path penalty			-		-	-		1	dB
LOS de-assert			LOSD		-	-		-25	dBm
LOS assert			LOSA		-35	-		-	dBm
LOS hysteresis			-		0.5	-		-	dB
1550nm DFB and PIN, 100km
Parameter			Symbol		Min.	Typical		Max.	Unit
9µm core diameter SMF			L		-	100		-	km
Data rate			-		-	1.063/1.25		-	Gbps
Transmitter
Center wavelength			λC		1500	1550		1580	nm
Spectral width (-20dB)			Δλ		-	-		1	nm
Side mode suppression ratio			SMSR		30	-		-	dB
Average output power			Pout		0	-		5	dBm
Extinction ratio			ER		9	-		-	dB
Rise/Fall time(20%～80%)			tr/tf		-	-		0.26	ns
Total jitter			TJ		-	-		0.43	UI
Output optical eye			Compliant with IEEE 802.3ah-2004
TX disable assert time			t_off		-	-		10	us
Pout@TX disable asserted			Pout		-	-		-45	dBm
Receiver
Center wavelength			λ		1260	-		1600	nm
Receiver sensitivity			Pmin		-	-		-28	dBm
Receiver overload			Pmax		-3	-		-	dBm
Return loss			-		12	-		-	dB
Optical path penalty			-		-	-		1	dB
LOS de-assert			LOSD		-	-		-29	dBm
LOS assert			LOSA		-42	-		-	dBm
LOS hysteresis			-		0.5	-		-	dB
1550nm DFB and APD, 120km
Parameter			Symbol		Min.	Typical		Max.	Unit
9µm core diameter SMF			L		-	120		-	km
Data rate			-		-	1.063/1.25		-	Gbps
Transmitter
Center wavelength			λC		1500	1550		1580	nm
Spectral width (-20dB)			Δλ		-	-		1	nm
Side mode suppression ratio			SMSR		30	-		-	dB
Average output power			Pout		0	-		5	dBm
Extinction ratio			ER		9	-		-	dB
Rise/Fall time(20%～80%)			tr/tf		-	-		0.26	ns
Total jitter			TJ		-	-		0.43	UI
Output optical eye			Compliant with IEEE 802.3ah-2004
TX disable assert time			t_off		-	-		10	us
Pout@TX disable asserted			Pout		-	-		-45	dBm
Receiver
Center wavelength			λ		1260	-		1600	nm
Receiver sensitivity			Pmin		-	-		-32	dBm
Receiver overload			Pmax		-10	-		-	dBm
Return loss			-		12	-		-	dB
Optical path penalty			-		-	-		1	dB
LOS de-assert			LOSD		-	-		-33	dBm
LOS assert			LOSA		-45	-		-	dBm
LOS hysteresis			-		0.5	-		-	dB
1550nm DFB and APD, 160km
Parameter			Symbol		Min.	Typical		Max.	Unit
9µm core diameter SMF			L		-	160		--	km
Data rate			-		-	1.063/1.25		-	Gbps
Transmitter
Center wavelength			λC		1500	1550		1580	nm
Spectral width (-20dB)			Δλ		-	-		1	nm
Side mode suppression ratio			SMSR		30	-		-	dB
Average output power			Pout		3	-		7	dBm
Extinction ratio			ER		9	-		-	dB
Rise/Fall time(20%～80%)			tr/tf		-	-		0.26	ns
Total jitter			TJ		-	-		0.43	UI
Output optical eye			Compliant with IEEE 802.3ah-2004
TX disable assert time			t_off		-	-		10	us
Pout@TX disable asserted			Pout		-	-		-45	dBm
Receiver
Center wavelength			λ		1260	-		1600	nm
Receiver sensitivity			Pmin		-	-		-37	dBm
Receiver overload			Pmax		-10	-		-	dBm
Return loss			-		12	-		-	dB
Optical path penalty			-		-	-		1	dB
LOS de-assert			LOSD		-	-		-38	dBm
LOS assert			LOSA		-45	-		-	dBm
LOS hysteresis			-		0.5	-		-	dB

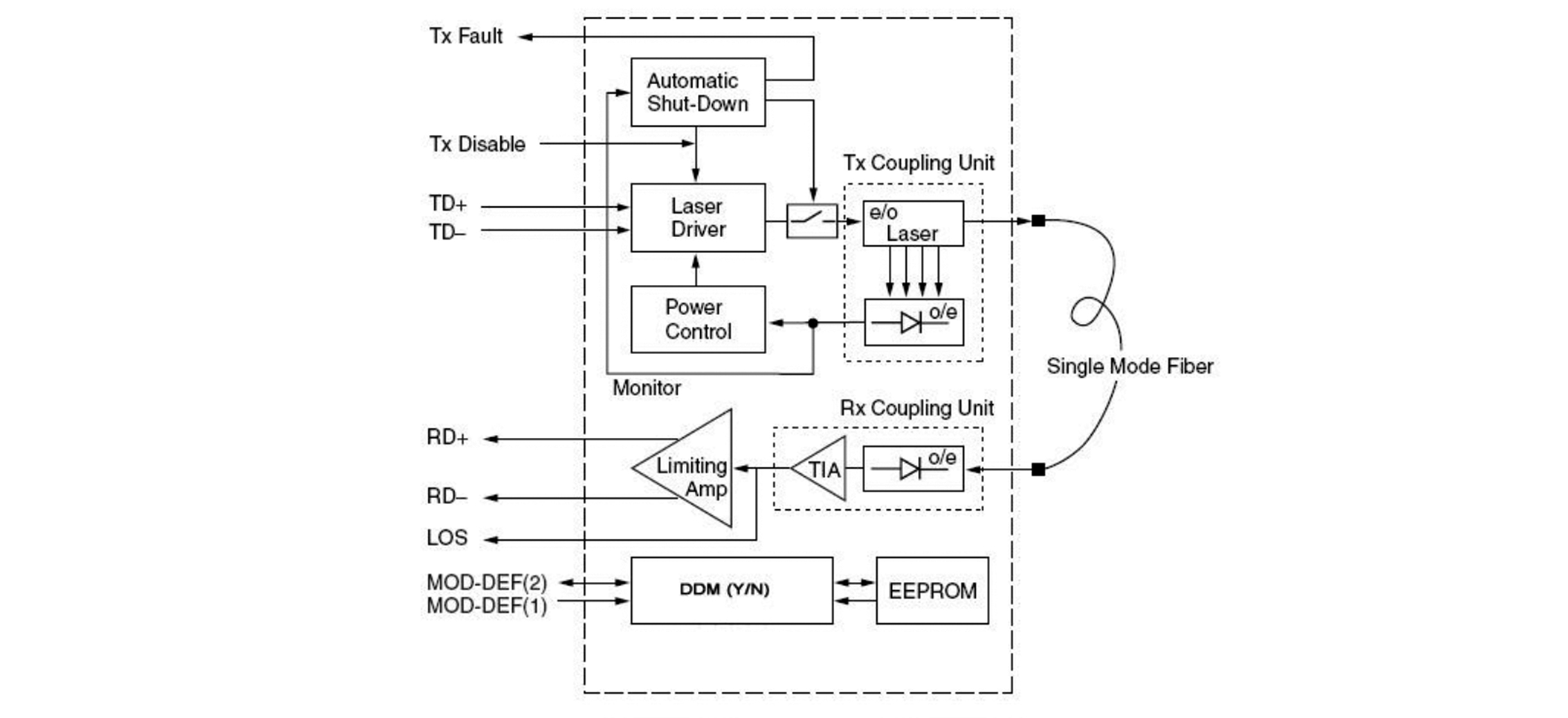

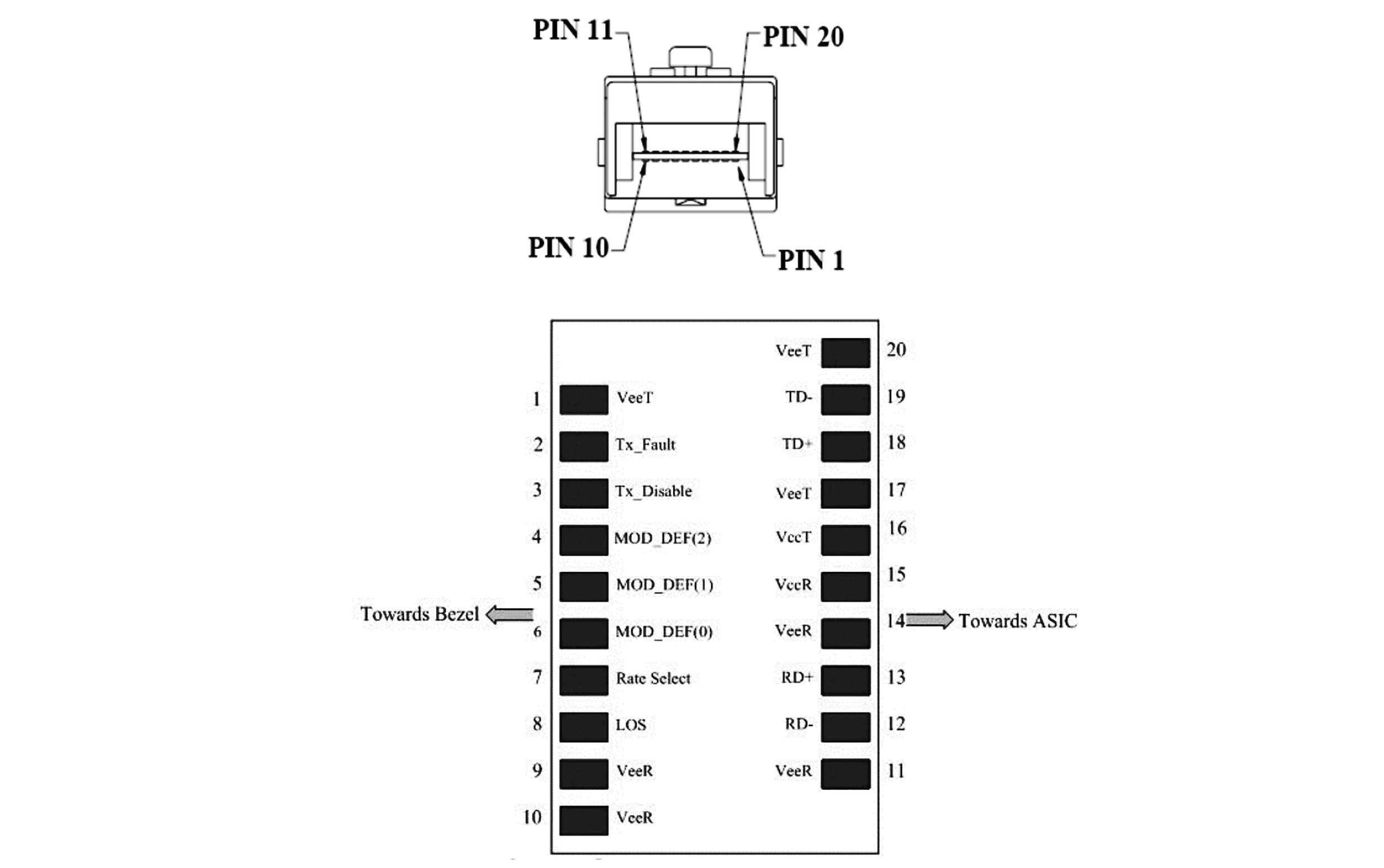

Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10K? resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kinds. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

2) TX disable is an input that is used to shutdown the transmitter optical output. It is pulled up within the module with a 4.7K – 10 K? resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled

3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10K resistor on the host board. The pull-up voltageshall be VccT or VccR .
Mod-Def 0 is grounded by the module to indicate that the module is present
Mod-Def 1 is the clock line of two wire serial interface for serial ID
Mod-Def 2 is the data line of two wire serial interface for serial ID

4) LOS is an open collector/drain output, which should be pulled up with a 4.7K – 10K? resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use).Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) VeeR and VeeT may be internally connected within the SFP module.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100? differential lines which should be terminated with 100? (differential) at the user SERDES. The AC coupling is done inside the module.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP connector pin. Maximum supply current is 300Ma. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1ohm should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no more than 30Ma greater than the steady state value.VccR and VccT may be internally connected within the SFP transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100? differential termination inside the module.
